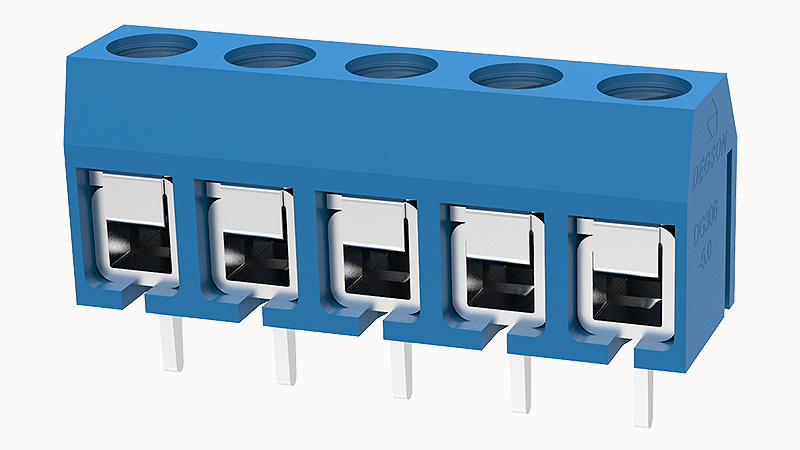

DEGSON DG306-5.0-05P

Conductor cross section solid

0.75~1.5mm²

Conductor cross section flexible

0.75~1.5mm²

AWG

22~14AWG

Strip length

6mm

Rated voltage (B)

300V

Rated current (B)

10A

Rated voltage(III/2)

250V

Rated surge voltage(III/2)

2KV

Connection direction

0°

Type of installation

PCB welding

Pin arrangement

Single row in a straight line

Screwdriver

Slotted screwdriver

Products weight (without packaging)

#N/A

Packing unit

#N/A

Operating tool

/

Marking strip

/

Bridge

DG019-5.0

Coding strip

/

Ambient temperature (operation)

-30℃~120℃(depending on derating curve)

Test Specification

UL1059/IEC60998

Insulating material group

Ⅲb

Insulation Materials

PBT

Contact point metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

no

Number of potentials

5

Number of rows

1

螺距

5mm

Rated current

15A

screw thread

M2.5

Connection method

Screw connection with wire protection

Rated voltage

250V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
