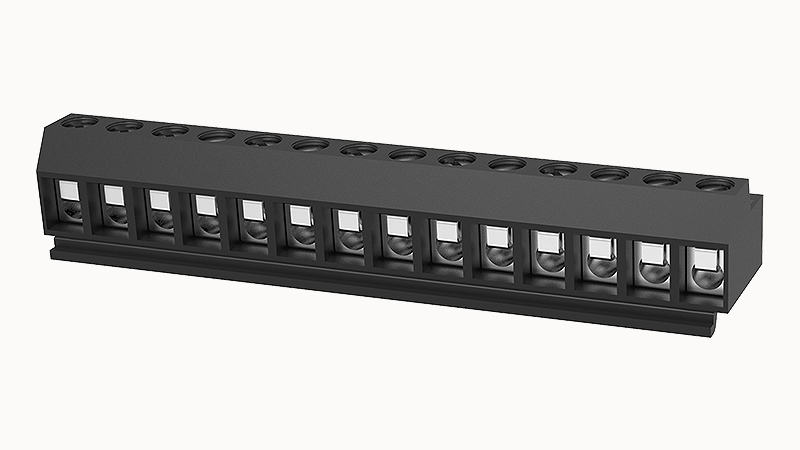

DEGSON DG331-5.0-14P

Conductor cross section solid

1.0~2.5mm²

Conductor cross section flexible

1.0~2.5mm²

AWG

28~14AWG

Torque

0.5N.m

Strip length

6mm

Rated voltage (B)

300V

Rated current (B)

10A

Rated voltage(III/2)

250V

Rated surge voltage(III/2)

2KV

Connection direction

0°

Screwdriver

Slotted screwdriver

Number of potentials

14

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact point metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

UL1059/IEC60998

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Operating tool

/

Coding strip

/

Bridge

DG019-5.0

Marking strip

/

Packing unit

#N/A

Products weight (without packaging)

#N/A

Number of rows

1

螺距

5mm

Rated current

12A

screw thread

M3

Connection method

Screw connection with wire protection

Rated voltage

250V

Flammability rating

UL94V-0
