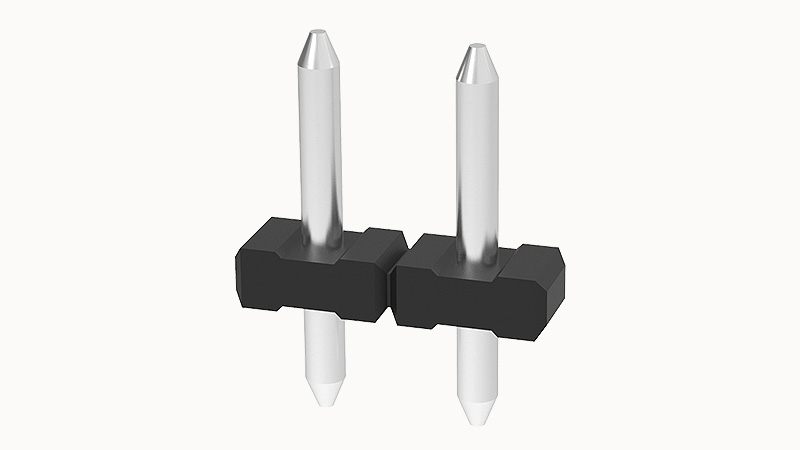

DEGSON DG332J-THR-5.0-02P
- 收藏
- 对比
DG332J-THR-5.0-02P
637-DG332J-THR-5.0-02P
端子板 - 针座，插头和插座
--
大陆
立即发货
Needle connector，Rated current：12A，Rated voltage（III/2）：250V，Pitch：5.0mm，Color：Black，Contact surface：Tin
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
DG332J-THR-5.0-02P详情
DEGSON DG332J-THR-5.0-02P重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
Ambient temperature (operation)
-40℃~130℃
Test Specification
IEC61984/ UL1059
Insulating material group
Ⅲa
Insulation Materials
High temperature resistant materials
Contact zone metal surface
tin-plated
Contact point metal surface
tin-plated
Contact Materials
Copper alloy
Environmental items
Compliant with REACH/RoHS
Pluggable or not
有
Number of potentials
2
Pin arrangement
Single row in a straight line
Type of installation
PCB welding
Rated power frequency voltage(1min)
2KV
Rated current(III/2)
250V
Rated current (D)
10A
Rated current (B)
10A
Rated voltage (D)
300V
Rated voltage (B)
300V
Number of rows
1
螺距
5mm
UL可燃性规范
UL94V-0
Rated current
12A
Rated voltage
250V
过程
Reflow soldering/wave soldering/manual soldering
