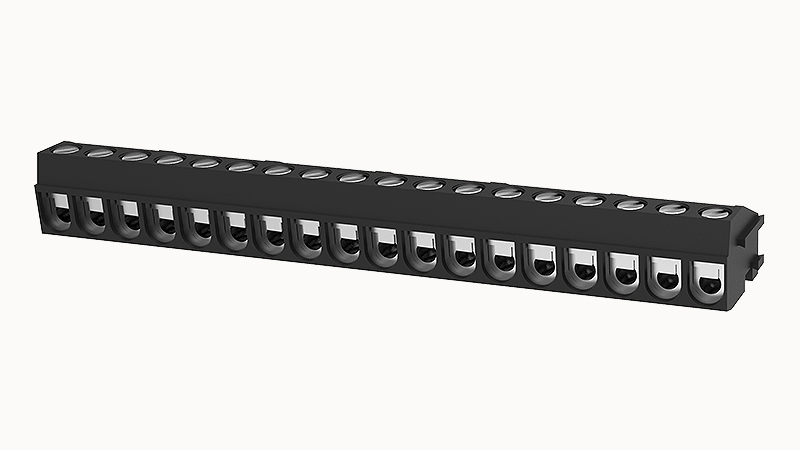

DEGSON DG332K-5.0-18P

Products weight (without packaging)

#N/A

Packing unit

#N/A

Operating tool

/

Marking strip

/

Bridge

DG019-5.0

Coding strip

/

Ambient temperature (operation)

-30℃~120℃(depending on derating curve)

Test Specification

UL1059/IEC60998

Insulating material group

Ⅲa

Insulation Materials

PBT

Contact zone metal surface

Nickel plating

Contact point metal surface

Nickel plating

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

有

Number of potentials

18

Screwdriver

Slotted screwdriver

Connection direction

0°

Rated surge voltage(III/2)

2KV

Rated voltage(III/2)

250V

Rated current (B)

10A

Rated voltage (B)

300V

Strip length

6mm

Torque

0.4N.m

AWG

28~16AWG

Conductor cross section flexible

0.2~1.5mm²

Conductor cross section solid

0.2~1.5mm²

Number of rows

1

螺距

5mm

UL可燃性规范

UL94V-0

Rated current

12A

screw thread

M2.5

Connection method

Screw connection with wire protection

Rated voltage

250V
