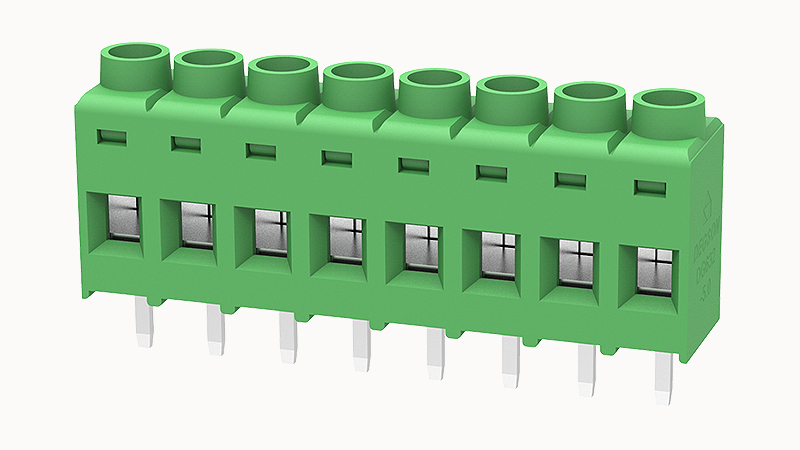

DEGSON DG632-5.0-08P

Conductor cross section solid

0.5~2.5mm²

Conductor cross section flexible

0.5~2.5mm²

AWG

28~12AWG

Torque

0.4N.m

Strip length

6mm

Rated voltage (B)

300V

Rated voltage (D)

300V

Rated current (B)

15A

Rated current (D)

10A

Products weight (without packaging)

10.81

Packing unit

560

Operating tool

/

Marking strip

/

Bridge

DG019-5.0

Coding strip

/

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Test Specification

UL1059/IEC60998

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact point metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

no

Number of potentials

8

Screwdriver

Slotted screwdriver

Pin arrangement

Single row in a straight line

Type of installation

PCB welding

Connection direction

0°

Rated surge voltage(III/2)

2KV

Rated voltage(III/2)

250V

Number of rows

1

螺距

5mm

Rated current

24A

screw thread

M2.5

Connection method

Screw connection

Rated voltage

250V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
