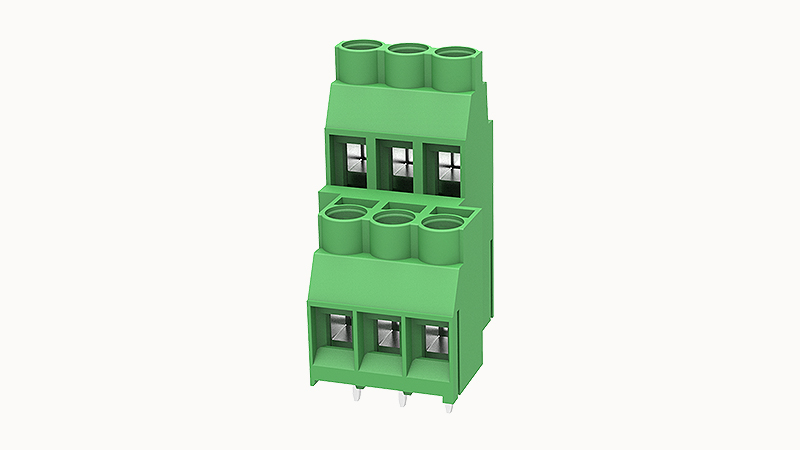

DEGSON DG636A-6.35-06P

Test Specification

IEC60947/UL1059

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Coding strip

/

Bridge

/

Marking strip

/

Operating tool

/

Packing unit

160

Products weight (without packaging)

19.2

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact point metal surface

tin-plated

Contact Materials

copper

Environmental items

Compliant with REACH/RoHS

Pluggable or not

no

Number of potentials

6

Screwdriver

Slotted screwdriver

Pin arrangement

Double-row in a straight line

Type of installation

PCB welding

Connection direction

0°

Rated surge voltage(II/2)

6KV

Rated surge voltage(III/2)

6KV

Rated surge voltage(III/3)

6KV

Rated voltage(II/2)

1000V

Rated voltage(III/2)

630V

Rated voltage(III/3)

500V

Rated current (D)

10A

Rated current (B)

30A

Rated voltage (D)

300V

Rated voltage (B)

300V

Strip length

8mm

Torque

0.8N.m

AWG

30~10AWG

Conductor cross section flexible

0.2~6.0mm²

Conductor cross section solid

0.2~6mm²

Number of rows

2

螺距

6.35mm

Rated current

32A

screw thread

M3.5

Connection method

Screw connection

Rated voltage

630V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
