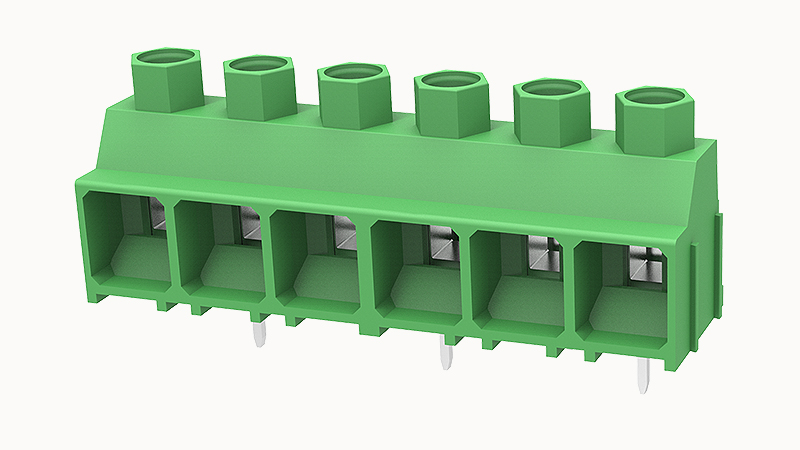

DEGSON DG638-9.52-DA-06P

Conductor cross section solid

0.2~6mm²

Conductor cross section flexible

0.2~4.0mm²

AWG

30~10AWG

Torque

0.8N.m

Strip length

8mm

Rated voltage (B)

600V

Rated voltage (C)

600V

Rated current (B)

30A

Rated current (C)

30A

Rated voltage(III/3)

690V

Rated voltage(III/2)

1000V

Rated voltage(II/2)

1000V

Rated surge voltage(III/3)

8KV

Rated surge voltage(III/2)

8KV

Rated surge voltage(II/2)

6KV

Connection direction

0°

Type of installation

PCB welding

Screwdriver

Slotted screwdriver

Number of potentials

6

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact point metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

IEC60947/UL1059

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Coding strip

/

Bridge

/

Marking strip

/

Operating tool

/

Packing unit

150

Products weight (without packaging)

18.62

Number of rows

1

螺距

9.52mm

Rated current

32A

screw thread

M3.5

Connection method

Screw connection

Rated voltage

1000V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
