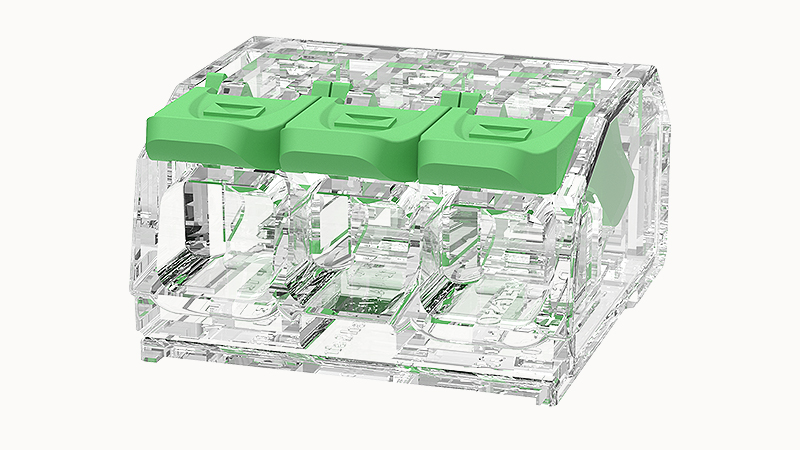

DEGSON DGBSC-SG01/4-03P

Conductor cross section solid

0.2~4mm²

Conductor cross section flexible

0.2~4.0mm²

AWG

24~12AWG

Strip length

12mm

Rated voltage (B)

600V

Rated voltage(III/2)

450V

Number of potentials

3

Pluggable or not

no

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact point metal surface

tin-plated

Contact zone metal surface

tin-plated

Insulation Materials

PC

Insulating material group

Ⅲa

Test Specification

UL1059/IEC60998

Ambient temperature (operation)

-40℃~85℃(depending on derating curve)

Coding strip

/

Bridge

/

Marking strip

/

Operating tool

/

Screwdriver

/

Packing unit

100

Products weight (without packaging)

3.22

Number of rows

1

螺距

5.6mm

Rated current

Rated current;32A

Connection method

Push-in spring connection

Flammability rating

UL94V-2
