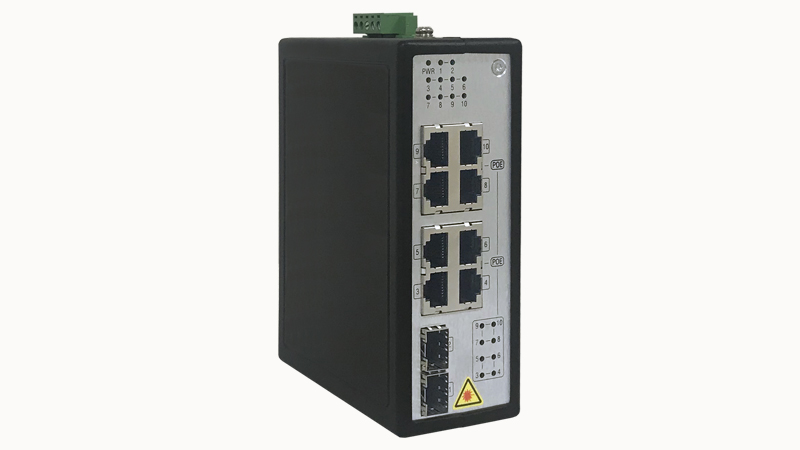

DEGSON DSW-A10K2080P
- 收藏
- 对比
DSW-A10K2080P
637-DSW-A10K2080P
可配置开关元件 - 主体
--
大陆
立即发货
2 10/ 100/1000Mbs BaseXSFPslot(does not containSFP optical module) 8802.3af/at PoE10/ 10/100Mbs Mbs BaseTElectrical interface,1CLI management port .IP30,Operating temperature-40～75℃.MTBF≥400,000H.
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
DSW-A10K2080P详情
DEGSON DSW-A10K2080P重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
Shell material
Die-cast aluminum alloy housing
Port 1 Type
RJ45
Number of ports 1
8;2
Port 2 Type
SFP optical module
Transmission rate
10/100/1000 Mbps
Installation method
Card rail installation
Protection class
IP30
MAC table size
4K
Bandwidth backplane
20Gbps
packet buffer
1.5Mb
Standards compliant
Telcordia SR-332
operating hours
≥400,000H
Warranty
5 years
PoE output standard 1
IEEE 802.3af
PoE output standard 2
IEEE 802.3at
PoE output power1
240W
PoE output power2
124.8W
PoE output current1
0.625A
PoE output current 2
0.325A
Supply voltage range
9.6~60VDC & 18~30VAC
reverse voltage protection
support
connecting wire diameter
0.5~1.5mm/ 28~16AWG
Overcurrent protection
support
working altitude
≤2000m
storage temperature
-40°C~+85°C
humidity
5% ~ 95% (non-condensing)
high
140mm
Packing unit
1 STK
Products weight (without packaging)
620g
Operating temperature
-40°C~+75°C
连接类型
5P plug-in terminal
Input voltage
48‐57VDC redundant dual input
length
110mm
width
52mm
