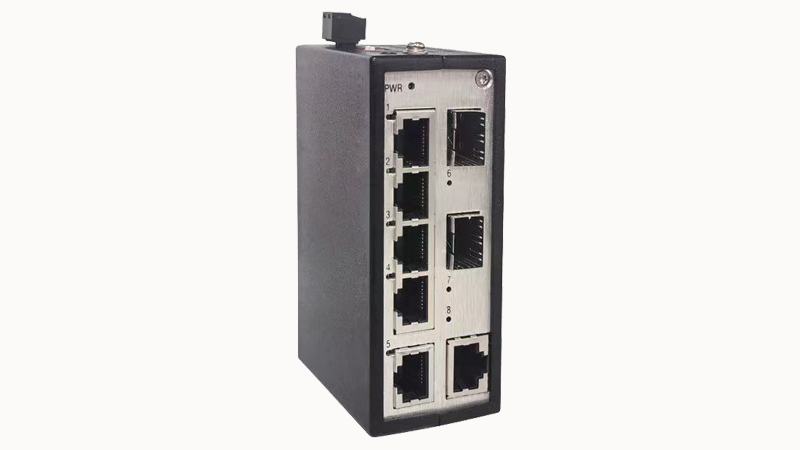

DEGSON DSW-A8K0206
- 收藏
- 对比
DSW-A8K0206
637-DSW-A8K0206
可配置开关元件 - 主体
--
大陆
立即发货
2 10/100Mbs BaseX SFP slot 6 10/100Mbs BaseT port, IP30,Operating temperature-40°C~ 75°C.12/24/48 VDC & 24VAC (9.6~60 VDC & 18~30 VAC) power supply enter(Only connect to class 2 power).
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
DSW-A8K0206详情
DEGSON DSW-A8K0206重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
Shell material
Die-cast aluminum alloy housing
Port 1 Type
RJ45
Number of ports 1
2;6
Port 2 Type
SFP optical module
Transmission rate
10/100 Mbps
switch
QoS function, BSP (Broadcast Storm Protection) function
Installation method
Card rail installation
Protection class
IP30
MAC table size
4K
Bandwidth backplane
16Gbps
packet buffer
1.5Mb
Standards compliant
Telcordia SR-332
operating hours
≥38,7641H
Warranty
5 years
Supply voltage range
9.6~60VDC & 18~30VAC
reverse voltage protection
support
connecting wire diameter
0.5~1.5mm/ 28~16AWG
Overcurrent protection
support
working altitude
≤2000m
storage temperature
-40°C~+85°C
humidity
5% ~ 95% (non-condensing)
Packing unit
1 STK
Products weight (without packaging)
230g
Operating temperature
-40°C~+75°C
连接类型
2P plug-in terminal
Input voltage
12/24/48 VDC & 24 VAC
length
100mm;61.8mm
width
40mm
