DEGSON FEAC-S-032A-P4-03-0.0M
- 收藏
- 对比
FEAC-S-032A-P4-03-0.0M
637-FEAC-S-032A-P4-03-0.0M
端子板 - 针座，插头和插座
--
大陆
立即发货

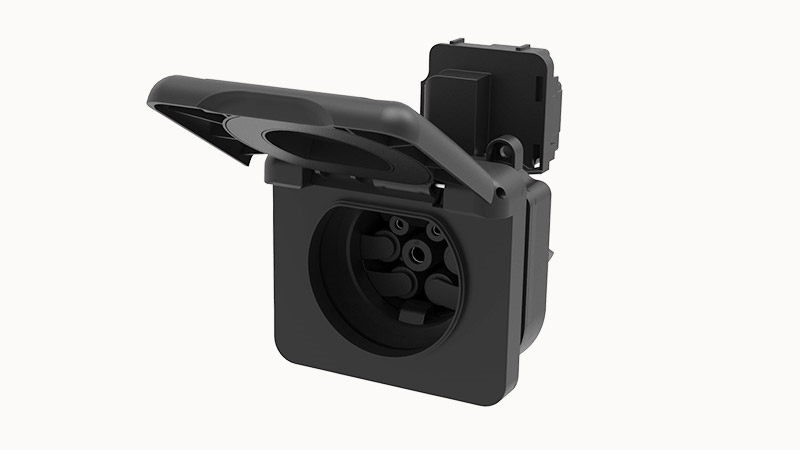

A charging socket for a charging post，cable-free, for charging electric vehicles (evs) using alternating current (AC) , Type 2, IEC 62196-2,32A/250V (AC) , enclosure: Black, DEGSON logo
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
FEAC-S-032A-P4-03-0.0M详情
DEGSON FEAC-S-032A-P4-03-0.0M重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
Shell material
Plastic
Ambient temperature (operation)
－ 30 °C ~ 50 °C
China RoHS
conform
REACH
conform
Contact surface material
Ag
Protective cover material
Plastic
Customization basis
Provided according to customer requirements
Cover color
black
Actuation component color
Silver
Shell color
black
Pullout force
< 100N
Insert / pull out cycle
10000
Signal transmission type
Pulse width adjustment
Signal contact rated voltage
30
Signal contact rated current
2
Quantity of signal contacts
2
Power contact rated voltage
250
Rated current of high-power contacts
32
Power pin quantity
3
Maximum charge power
8KW
IP class
IP54(coupling )
Maximum altitude
5000m(Above sea level )
Ambient temperature (storage/transportation)
－ 40 °C ~ 80 °C
Insertion force
< 100N
相位
1
Flammability rating
V0
