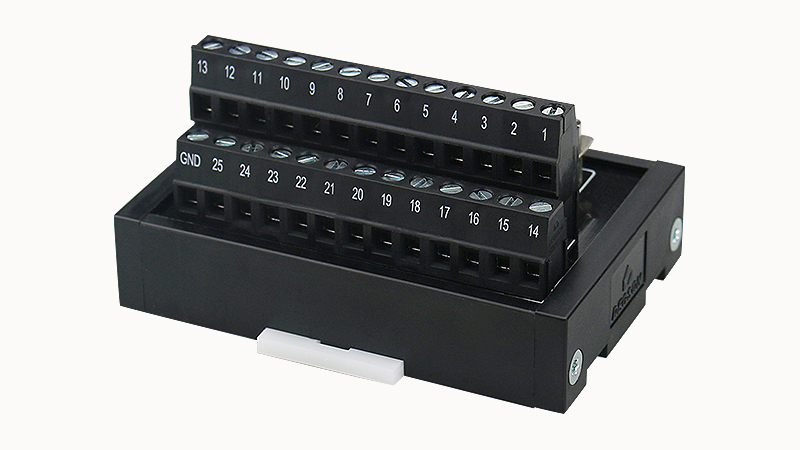

DEGSON Interface module-DM50-DBJ-25-25-4Y-00A(H)

Products weight (without packaging)

80

Packing unit

6

Hard wire cross section

1.0 mm² ... 2.5 mm²

Connection meets standards

UL1059

Connectable guide cross section AWG

28-12AWG

Cross section of flexible conductor

1.0 mm² ... 2.5 mm²

spacing

2.77mm

Number of digits

25

Connection volume

1

Connection name

Control system side

Status Display

no

Signal points

25

Maximum allowable current

2A

Maximum allowable working voltage

30VDC

Installation location

Arbitrary

Flame retardant grade, in line with UL94

V0

Rated overvoltage

0.5kV

Overvoltage category

Ⅲ

Pollution level

3

Standards/Regulations

IEC61810

Ambient temperature (storage/transportation)

-20 °C ... 70 °C

Ambient temperature (operation)

-20 °C ... 70 °C

screw thread

M3

Stripping length

6-7mm

Connection method

D-SUB connection

width

57mm

高度

42mm

length

81mm
