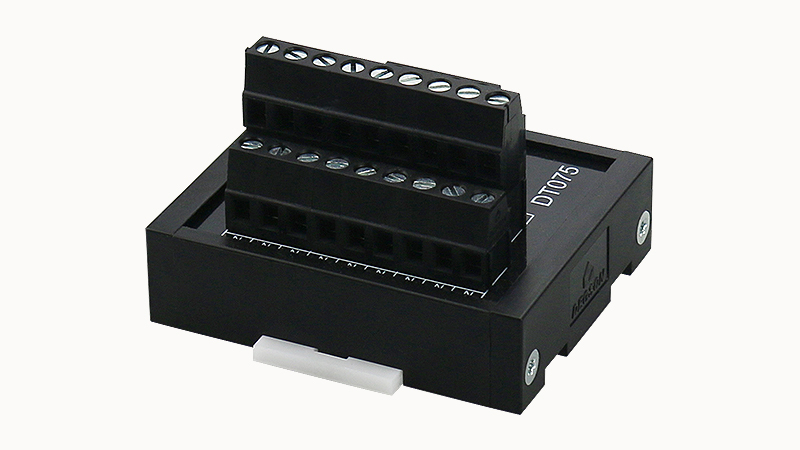

DEGSON Interface module-DT075-00A(H)

Ambient temperature (operation)

-20 °C ... 70 °C

Ambient temperature (storage/transportation)

-20 °C ... 70 °C

Standards/Regulations

IEC61810

Pollution level

3

Overvoltage category

Ⅲ

Rated overvoltage

0.5kV

Flame retardant grade, in line with UL94

V0

Installation location

Arbitrary

Maximum allowable working voltage

30VDC

Maximum allowable current

10A

Signal points

2

Status Display

no

Connection name

On-site side

Connection volume

1

Number of digits

18

spacing

5.08mm

Cross section of flexible conductor

1.0 mm² ... 2.5 mm²

Connectable guide cross section AWG

28-12AWG

Connection meets standards

UL1059

Hard wire cross section

1.0 mm² ... 2.5 mm²

screw thread

M3

Stripping length

6-7mm

Connection method

Screw connection

width

57mm

高度

42mm

length

65.6mm
