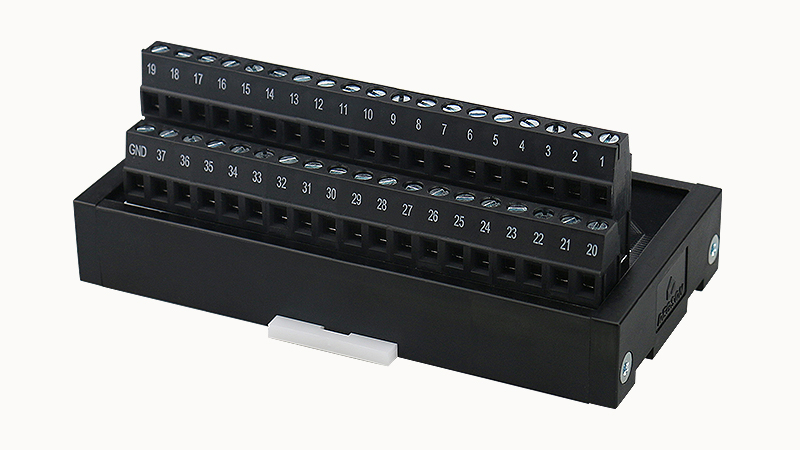

DEGSON Interface module-DM50-DBJ-37-37-4Y-00A(H)

Connection name

Control system side

Connection volume

1

Number of digits

37

spacing

2.77mm

Cross section of flexible conductor

1.0 mm² ... 2.5 mm²

Connectable guide cross section AWG

28-12AWG

Connection meets standards

UL1059

Hard wire cross section

1.0 mm² ... 2.5 mm²

Packing unit

6

Products weight (without packaging)

80

Status Display

no

Signal points

37

Maximum allowable current

2A

Maximum allowable working voltage

30VDC

Installation location

Arbitrary

Flame retardant grade, in line with UL94

V0

Rated overvoltage

0.5kV

Overvoltage category

Ⅲ

Pollution level

3

Standards/Regulations

IEC61810

Ambient temperature (storage/transportation)

-20 °C ... 70 °C

Ambient temperature (operation)

-20 °C ... 70 °C

screw thread

M3

Stripping length

6-7mm

Connection method

D-SUB connection

length

111mm

高度

42mm

width

57mm
