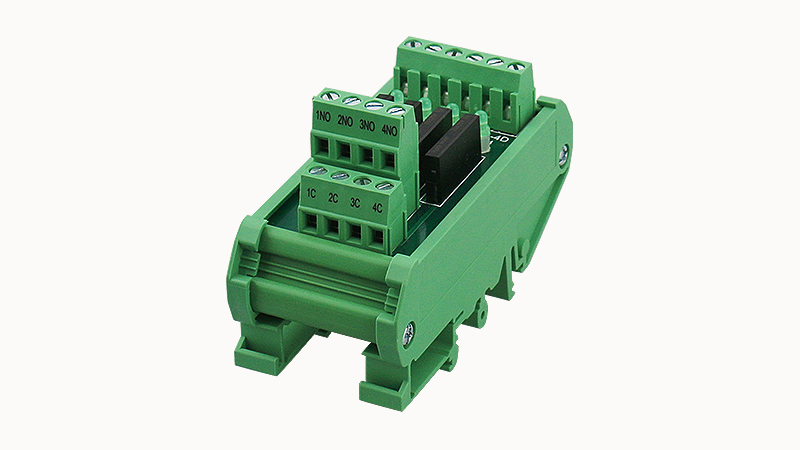

DEGSON Relay module-DM72-RME-04-PN-1-4D-00A(H)

Installation location

Arbitrary

Shell Insulation Materials

PVC/PA66

Rated input voltage

20VDC~ 28VDC

Input voltage range relative to UN

0.9....1.1

protected name

Polarity protection

Protection circuits/components

Polarity Protection Diode

Status display/channel

green

Maximum switching voltage

60VAC 60VDC

Limit continuous current

3A

Fault monitoring (open circuit/short circuit)

no

connection name

output

thread

M3

connection volume

1

number of digits

8

Hard conductor cross section

1.0 ... 2.5mm²

Flexible conductor cross section

1.0 ... 2.5mm²

Connectable guide cross section AWG

28...12AWG

Ambient temperature (operation)

-20 °C ... 70 °C

Ambient temperature (storage/transportation)

-20 °C ... 70 °C

Standards/Regulations

IEC61810

Pollution level

3

Overvoltage category

Ⅲ

Packing unit

4

Products weight (without packaging)

67

color

green

contact type

1NO

Number of channels

4

Stripping length

6-7mm

Connection method

screw connection

width

90mm

高度

60mm

length

40mm
