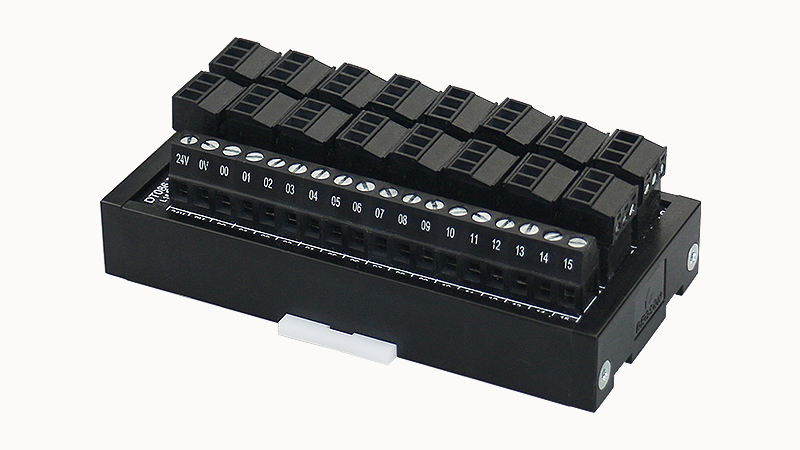

DEGSON Interface module-DT086-P-00A(H)

Ambient temperature (operation)

-20 °C ... 70 °C

Ambient temperature (storage/transportation)

-20 °C ... 70 °C

Standards/Regulations

IEC61810

Pollution level

3

Overvoltage category

Ⅲ

Rated overvoltage

0.5kV

Flame retardant grade, in line with UL94

V0

Installation location

Arbitrary

Maximum allowable working voltage

30VDC

Maximum allowable current

2A

Signal points

16

Status Display

有

Connection name

Control system side

Connection volume

1

Number of digits

18

spacing

5.08mm

Cross section of flexible conductor

0.5mm² ... 1.5 mm²

Connectable guide cross section AWG

28-16AWG

Connection meets standards

UL1059

Hard wire cross section

0.5mm² ... 1.5 mm²

Packing unit

1

Products weight (without packaging)

135

screw thread

M2

Stripping length

7mm

Connection method

Screw connection

width

57mm

高度

35mm

length

111mm
