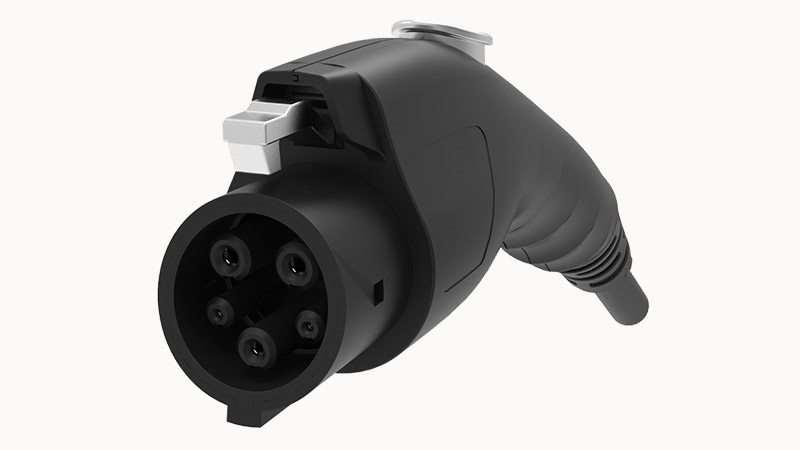

DEGSON MAAC-S-050A-V-03-5.0M

Shell material

Plastic

Vehicle connector height

101mm(Vehicle charging connector)

Vehicle connector width

54.5mm(Vehicle charging connector)

Vehicle connector depth

249.2mm(Vehicle charging connector)

Strip length

100±10mm

Ambient temperature (operation)

－ 30 °C ~ 50 °C

Ambient temperature (storage/transportation)

－ 40 °C ~ 80 °C

Maximum altitude

5000m(Above sea level )

IP class

Type 3S

Maximum charge power

12KW

Power pin quantity

3

Power contact rated voltage

240

Quantity of signal contacts

2

Signal contact rated current

2

Signal contact rated voltage

30

Resistance coding

480Ω

Signal transmission type

Pulse width adjustment

Insert / pull out cycle

10000

Pullout force

< 75N

Shell color

black

Actuation component color

Silver

Cover color

black

Customization basis

Provided according to customer requirements

Handle material area

Plastic

Protective cover material

Soft plastic

Contact surface material

Ag

REACH

conform

China RoHS

conform

Cable composition

3*8AWG+1*18AWG

Wiring standard

UL62

Wiring level

5 class

Cable outer diameter

21.7±0.8mm

Cable resistance

≤ 0.00558 Ω/m (Based on the power core, at an ambient temperature of 20°C)

Outer sheath,color

black

Outer sheath, material

PUR

Cable length

5000±100mm

Wire type

Straight line

Insertion force

< 75N

证明书

UL

Minimum bend radius

130.2mm

相位

1

Flammability rating

V0
