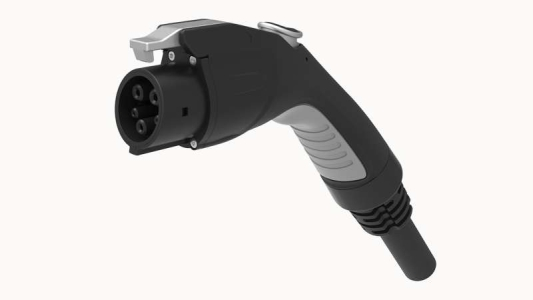

DEGSON MAAC-S-080A-V-03-5.0M

Shell material

Plastic

Vehicle connector height

173.5mm(Vehicle charging connector)

Vehicle connector width

53.7mm(Vehicle charging connector)

Vehicle connector depth

244.3mm(Vehicle charging connector)

Strip length

100±10mm

Ambient temperature (operation)

－ 30 °C ~ 50 °C

Ambient temperature (storage/transportation)

－ 40 °C ~ 80 °C

Maximum altitude

5000m(Above sea level )

IP class

IP67

Handle color

grey

Maximum charge power

20KW

Power pin quantity

3

Power contact rated voltage

250

Quantity of signal contacts

2

Signal contact rated current

2

Signal contact rated voltage

30

Resistance coding

480Ω

Signal transmission type

Pulse width adjustment

Insert / pull out cycle

10000

Pullout force

< 75N

Shell color

black

Actuation component color

Silver

Cover color

black

Customization basis

Provided according to customer requirements

Handle material area

硅橡胶

Protective cover material

Soft plastic

Contact surface material

Ag

REACH

conform

China RoHS

conform

Cable composition

2*5AWG+1*6AWG+1*16AWG

Cable outer diameter

26.7±0.8mm

Wiring standard

UL62

Wiring level

5 class

Outer sheath,color

black

Outer sheath, material

TPE

Cable length

5000±100mm

Rated current

80A

Wire type

Straight line

Insertion force

< 75N

证明书

UL

相位

1

Flammability rating

V0
