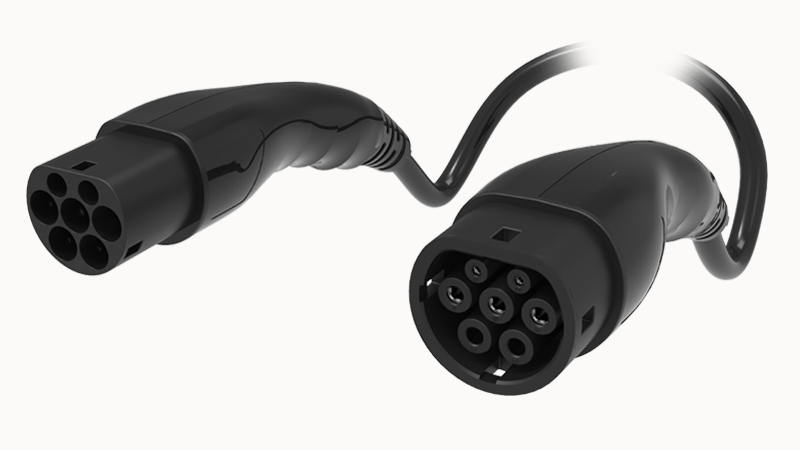

DEGSON MEAC-S-032A-V1P1-5.0M

Maximum altitude

5000m(Above sea level )

Ambient temperature (operation)

－ 30 °C ~ 50 °C

IP class

IP54（protection cover）

Maximum charge power

8KW

Power pin quantity

3

Rated current of high-power contacts

32

Power contact rated voltage

440

Quantity of signal contacts

2

Signal contact rated current

2

Signal contact rated voltage

24

Resistance coding

220Ω

Temperature measurement

PT1000

Pullout force

< 100N

Shell color

black

EV charger color

black

Cover color

black

Customization basis

Provided according to customer requirements

Handle material area

Plastic

Protective cover material

Soft plastic

Contact surface material

Ag

China RoHS

conform

Cable composition

3*6mm²+1*0.75mm²

Wiring standard

EN50620

Wiring level

5 class

Cable outer diameter

13±0.5mm

Cable resistance

≤ 0.0033 Ω/m (Based on the power core, at an ambient temperature of 20°C)

Outer sheath,color

black

Outer sheath, material

PUR

Vehicle connector height

79mm(Vehicle charging connector)

Vehicle connector depth

222.3mm(Vehicle charging connector)

Strip length

100±10mm

Cable length

5000±50mm

Wire type

Straight line

Insertion force

< 100N

证明书

CE

Minimum bend radius

78mm

相位

1

width

70mm

Flammability rating

V0
