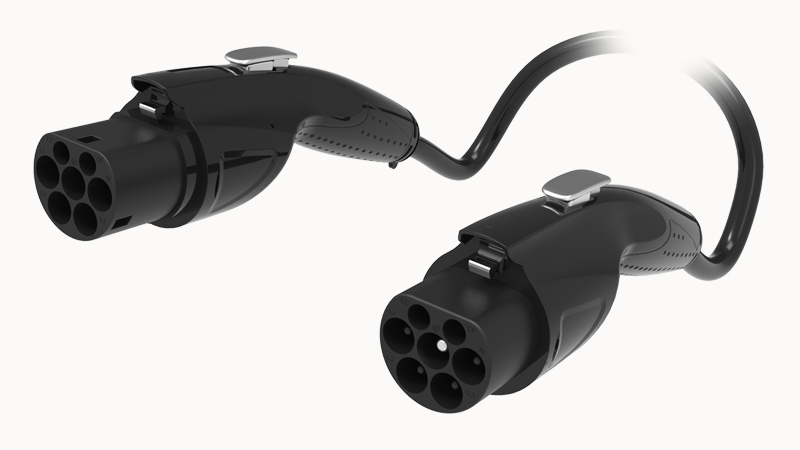

DEGSON MGAC-T-032A-VP-5.0M

Name: MGAC-T-032A-VP-5.0M
Brand: DEGSON
SKU: 637-MGAC-T-032A-VP-5.0M
Availability: InStock
Rating: 5 (1 reviews)

收藏
对比

型号

MGAC-T-032A-VP-5.0M

品牌

DEGSON

utmel 编号

637-MGAC-T-032A-VP-5.0M

商品类别

端子板 - 针座，插头和插座

封装

交货地

大陆

交期（工作日）

立即发货

ROHS

ECAD

简介

AC EV Charger with vehicle charging plug for charging electric vehicles (EVs) with alternating current (AC) and charging post plug, charging via GB/T vehicle socket, compatible with electric vehicle charging stations (EVSE) at the GB/T charging post socket outlet compatible

起订量

1最小包装量--

添加到询价列表

MGAC-T-032A-VP-5.0M DEGSON AC EV Charger with vehicle charging plug for charging electric vehicles (EVs) with alternating current (AC) and charging post plug, charging via GB/T vehicle socket, compatible with electric vehicle charging stations (EVSE) at the GB/T charging post socket outlet compatible

请发送询价，我们将立即回复。

库存:

请发送询价，我们将立即回复。

* 联系人姓名

* 电话

* 邮箱

* 公司名称

* 数量

在线咨询

MGAC-T-032A-VP-5.0M详情

技术参数

PDF文档

DEGSON MGAC-T-032A-VP-5.0M重要参数规格及、参数值，及相似型号如下：

参数名

参数值

全选
参数名

参数值

全选
Shell material

Plastic
Ambient temperature (operation)

－ 30 °C ~ 50 °C
Ambient temperature (storage/transportation)

－ 40 °C ~ 80 °C
IP class

IP54(coupling )
Maximum charge power

24KW
Rated current of high-power contacts

32
Power contact rated voltage

440
Quantity of signal contacts

2
Signal contact rated current

2
Signal contact rated voltage

30
Resistance coding

220Ω
Signal transmission type

Pulse width adjustment
Shell color

black
EV charger color

black
Cover color

black
Customization basis

Provided according to customer requirements
Handle material area

Plastic
Actuating handle material

Metal
Protective cover material

Soft plastic
Connection material

Plastic
Contact surface material

Ag
REACH

conform
China RoHS

conform
Cable composition

5*6mm²+1*0.75mm²
Wiring standard

GB/T 33594-2017
Wiring level

5 class
Cable outer diameter

21.9±0.8mm
Cable resistance

≤ 0.00798 Ω/m (Based on the power core, at an ambient temperature of 20°C)
Outer sheath,color

black
Outer sheath, material

PUR
Vehicle connector height

101mm(Vehicle charging connector)
Vehicle connector width

75mm(Vehicle charging connector)
Vehicle connector depth

236.8mm(Vehicle charging connector)
Strip length

100±10mm
Cable length

5000±100mm
Wire type

Straight line
Minimum bend radius

106 mm
Flammability rating

V0
