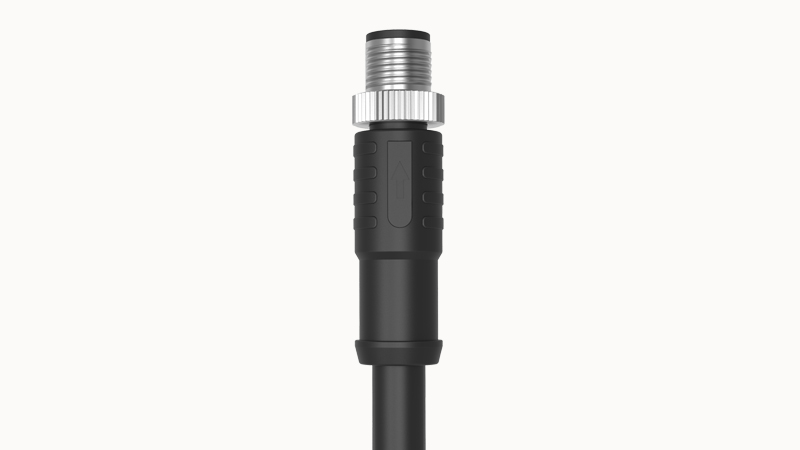

DEGSON PM-M12T-04P-MM-SL8B01

Conductor material

Tinned copper

Ambient temperature

-25℃...80℃

IP class

IP68

Number of potentials

4

Error-proof coding

T-Code

Overvoltage level

Ⅲ

Pollution level

3

Insertion and pullout cycle

≥ 100

Torque

0.4 Nm

Flammability rating ,in line with UL94

V0

Contact Materials

CuZn

Material of contact surface

Au

Contact carrier material

PU

Coil material

Zinc alloy, nickel plated

Sealing material

Silicon

Standards/specifications

IEC 61076-2-111

Cable Types

PUR Black

Cable type(abbreviation)

PUR

UL AWM form

UL20549

Cross section

1.31mm²

AWG signal wire

16AWG

Wire structure Signal wire

266/0.08mm

Core diameter (including insulation layer)

2.4±0.05mm

Wire color

1 Brown 2 White 3 Blue 4 Black

Thickness, insulation

0.68mm

Cable outer diameter D

7.8mm

Minimum bend radius ,fixed installation

5*OD

Minimum bend radius ,mobile installation

10*OD

Bending times

4 million times

Bending radius

50.8mm

Cable weight

98.5kg/km

Outer sheath, material

PU

Conductor insulation material

PVC

Conductor resistance

Maximum 14.6Ω/km (at 20 °C) )

Nominal cable voltage

300V

Cable test voltage

2000V

Special attributes

Silicone-free

Flame retardant

Comply with UL 758/1581 FT2 standard

Other protection functions

UV/hydrolysis resistance

Insulation resistance

10MΩ

Cable length

1m

Rated current

12A
