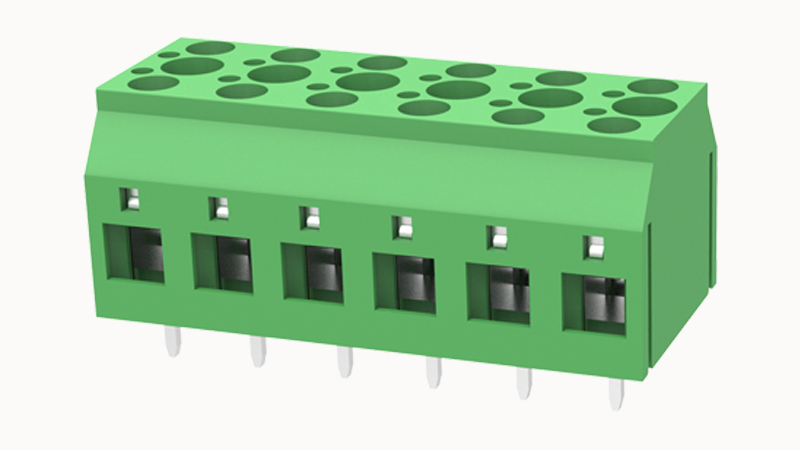

DEGSON PS4-7.5-06P

Test Specification

UL1059/IEC60998

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Coding strip

/

Bridge

/

Marking strip

/

Operating tool

/

Packing unit

192

Products weight (without packaging)

32.552083333333

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact point metal surface

tin-plated

Contact Materials

copper

Environmental items

Compliant with REACH/RoHS

Pluggable or not

no

Number of potentials

6

Screwdriver

Slotted screwdriver

Pin arrangement

Double-row in a straight line

Type of installation

PCB welding

Connection direction

0°

Rated surge voltage(III/2)

4KV

Rated voltage(III/2)

320V

Rated current (D)

10A

Rated current (B)

25A

Rated voltage (D)

300V

Rated voltage (B)

300V

Strip length

13mm

Torque

0.5N.m

AWG

24~10AWG

Conductor cross section flexible

0.2~4.0mm²

Conductor cross section solid

0.2~4mm²

Number of rows

1

螺距

7.5mm

Rated current

32A

screw thread

M3

Connection method

Screw connection

Rated voltage

320V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
