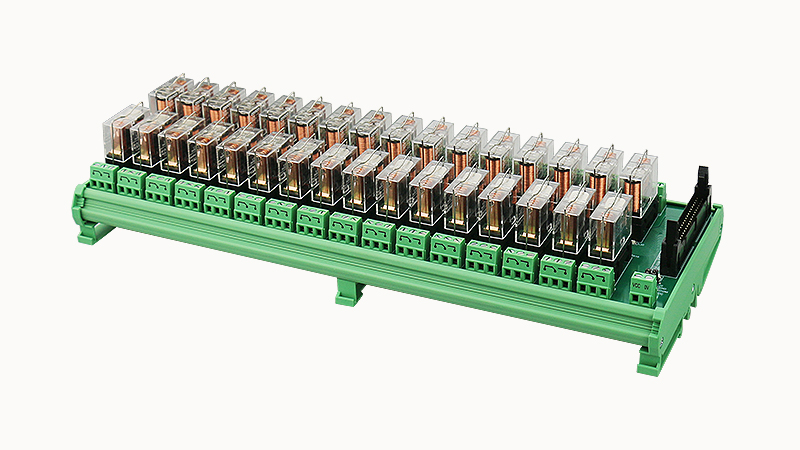

Relay module-DM108-RM-32-PN-2-4M-01A(H)

Relay module-DM108-RM-32-PN-2-4M-01A(H)

注：图像仅供参考，请参阅产品规格

技术文档

PDF列表

PDF文档列表

免费送样

DEGSON Relay module-DM108-RM-32-PN-2-4M-01A(H)

收藏
对比

型号

Relay module-DM108-RM-32-PN-2-4M-01A(H)

品牌

utmel 编号

637-Relay module-DM108-RM-32-PN-2-4M-01A(H)

商品类别

模块化连接器 - 接线块

封装

--

交货地

大陆

交期（工作日）

立即发货

ROHS

ECAD

简介

ordinary Relay Module,with 40P/20P Horn connector,with relay Socket ,can install 32 ordinary relays,with 1C/O,with indicator light,Omron relay,PNP or NPN signal can be input (Please contact us for relay replacement)

起订量

1最小包装量--

添加到询价列表

Relay module-DM108-RM-32-PN-2-4M-01A(H)

Relay module-DM108-RM-32-PN-2-4M-01A(H) DEGSON ordinary Relay Module,with 40P/20P Horn connector,with relay Socket ,can install 32 ordinary relays,with 1C/O,with indicator light,Omron relay,PNP or NPN signal can be input (Please contact us for relay replacement)

请发送询价，我们将立即回复。

库存:

请发送询价，我们将立即回复。

* 联系人姓名

* 电话

* 邮箱

* 公司名称

* 数量

*

验证码

Relay module-DM108-RM-32-PN-2-4M-01A(H)详情

技术参数

PDF文档

DEGSON Relay module-DM108-RM-32-PN-2-4M-01A(H)重要参数规格及、参数值，及相似型号如下：

参数名

参数值

全选
参数名

参数值

全选
Installation location

Arbitrary
Shell Insulation Materials

PVC/PA66
Rated input voltage

24VDC
Input voltage range relative to UN

0.9....1.1
protected name

Polarity protection
Protection circuits/components

Polarity Protection Diode
Status display/channel

green
Maximum switching voltage

240VAC 30VDC
Limit continuous current

16A
Fault monitoring (open circuit/short circuit)

no
connection name

output
thread

M3
connection volume

32
number of digits

3
Hard conductor cross section

1.0 ... 2.5mm²
Flexible conductor cross section

1.0 ... 2.5mm²
Connectable guide cross section AWG

28...12AWG
Ambient temperature (operation)

-20 °C ... 70 °C
Ambient temperature (storage/transportation)

-20 °C ... 70 °C
Standards/Regulations

IEC61810
Pollution level

3
Overvoltage category

Ⅲ
Packing unit

3
Products weight (without packaging)

360
color

green
contact type

1C/O
Number of channels

32
Stripping length

6-7mm
Connection method

screw connection
width

125mm
高度

70mm
length

186mm
