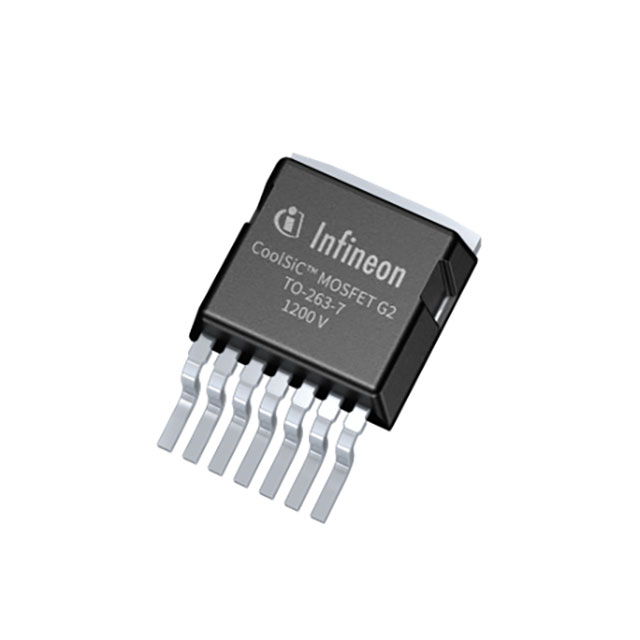

Infineon Technologies IMBG120R078M2HXTMA1

安装类型

表面贴装

包装/外壳

TO-263-8, D2PAK (7 Leads + Tab), TO-263CA

供应商器件包装

PG-TO263-7-12

Drive Voltage (Max Rds On, Min Rds On)

15V, 18V

Voltage - Gate Threshold (Vgs(th)) (Max) @ Id

5.1V @ 2.8mA

Power Dissipation (Max)

158W (Tc)

Base Product Number

IMBG120R078

厂商

Infineon Technologies

Current - Continuous Drain (Id) @ 25℃

29A (Tc)

操作温度

-55°C ~ 175°C (TJ)

系列

CoolSiC? Gen 2

包装

Tape & Reel (TR)

零件状态

活跃

场效应管类型

N-Channel

Rds On(Max)@Id,Vgs

78.1mOhm @ 8.9A, 18V

输入电容(Ciss)(Max)@Vds

700 pF @ 800 V

门极电荷(Qg)(最大)@Vgs

20.6 nC @ 18 V

漏源电压 (Vdss)

1200 V

Vgs（最大值）

+23V, -10V
