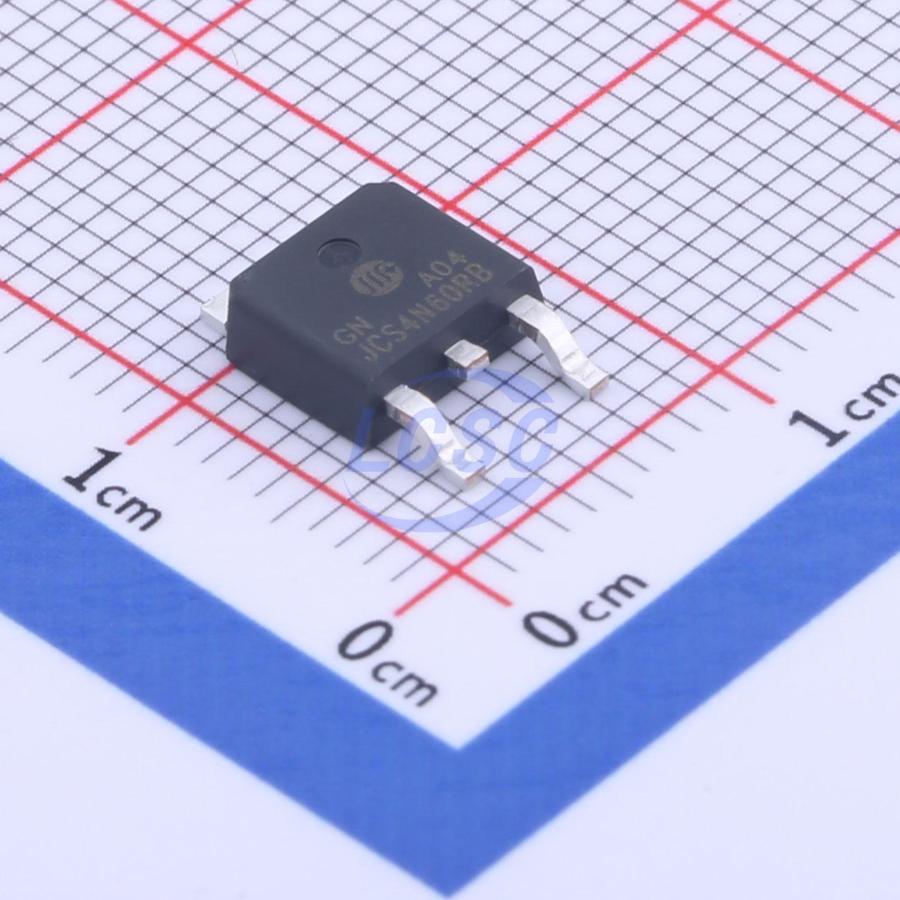

Jilin Sino-Microelectronics JCS4N60RB

Package

Tape & Reel (TR)

Total Gate Charge (Qg@Vgs)

13.3nC@10V

Input Capacitance (Ciss@Vds)

702pF@25V

Reverse Transfer Capacitance (Crss@Vds)

2.69pF@25V

Gate Threshold Voltage (Vgs(th)@Id)

4V@250uA

Power Dissipation (Pd)

165.56W

Drain Source On Resistance (RDS(on)@Vgs,Id)

1.7Ω@10V,2A

Drain Source Voltage (Vdss)

600V

RoHS

true

操作温度

-55℃~+150℃@(Tj)

类型

1 N-Channel

Continuous Drain Current (Id)

4A
