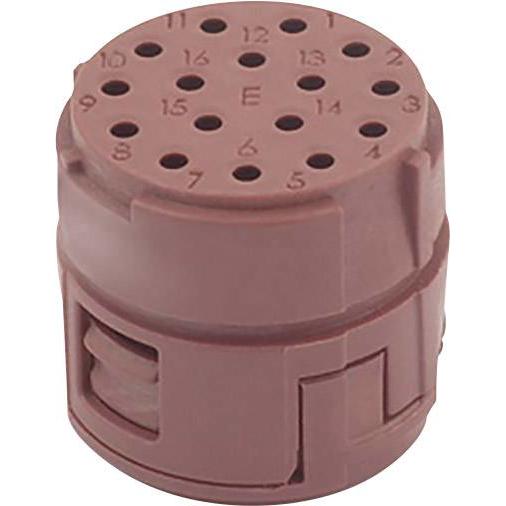

Lapp 73002706

触点镀层

Gold

Number of pins

16

Content

5pc(s)

Total no. of pins

16

Industrial packaging

有

Leading contact (PE)

无

Connections

Soldering,Crimp

Manufacturer part #

73002706

Connector cross section

0.14 - 1mm²

With protective conductor

无

Connectable conductor cross section fine-strand with cable end sleeve

0.14 - 1

Type of electric connection

压接

Ambient temperature

-25 - 125

Rated current In

7

Connectable conductor cross section fine-strand without cable end sleeve

0.14 - 1

Material connector insert

Thermoplastic

Diameter plug-in contact

1

Material of contact surface

Gold

Material contact

Brass

Contact insert without contacts

有

Connectable conductor cross section multi-wired

0.14 - 1

Pollution degree

3

With wire protection

有

Overvoltage category

III

Inflammability class of insulation material according to with UL94

V0

Rated surge voltage

1.5

Connectable conductor cross section solid-core

0.14 - 1

Connector type

Socket,Plug

类型

P-part, left-hand

Test current

7A

Rated voltage

150V

特征

Right-hand
