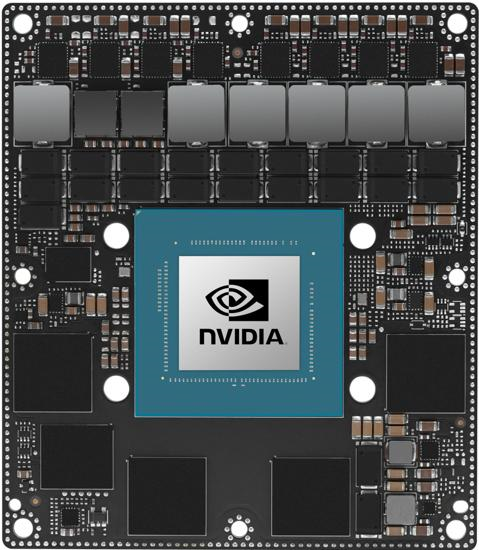

Nvidia 900-13701-0050-000

EU RoHS

供应商未确认

ECCN (US)

5A992c.

HTS

8473.30.11.80

Processor Type

ARM

Processor Family

Cortex-A78AE v8.2

Processor Number

ARM Cortex-A78AE v8.2

Processor Cores

12 Core

Processor Speed (Hz)

2.2G

JTAG Support

有

Data Cache Size (B)

3M|6M

Number of System Memory

1

RAM Type

LPDDR5

System Memory Socket Type

DRAM

System Memory Maximum Size (B)

64G

System Memory Speed

3200MHz

UART

4

USART

0

I2C

8

VGA

0

PATA

0

Audio Interfaces

1@DMIC/1@DSPK

Video In

有

RS485

0

RS232

0

RS422

0

PCI

0

AGP

0

Ethernet Controller Type

RGMII

Ethernet Speed

1000Mbps/10000Mbps

Display Interface

DP|eDP|HDMI

Graphic Card Resolution (Pixels)

7680×4320@DP

Operating Systems

JetPack SDK|Linux|RTOS

Linux

Linux

Medical Application

有

Minimum Operating Supply Voltage (V)

7

Typical Operating Supply Voltage (V)

5

Maximum Operating Supply Voltage (V)

20

Pinout Type

SOM

零件状态

活跃

显示类型

LCD

以太网

5

USB

7

外形尺寸

Compact

[医]GPIO

0

萨塔

0

SPI,SPI

3

CAN

2
