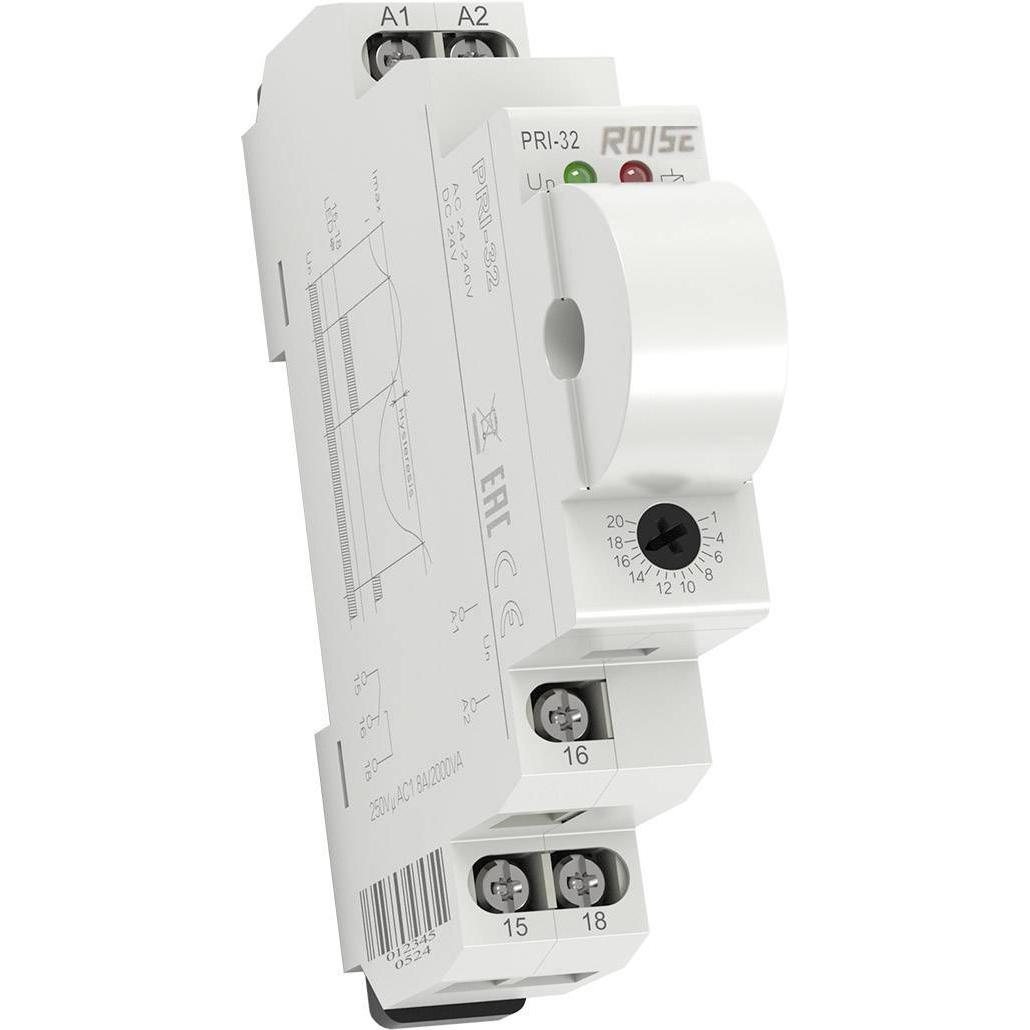

Rose PRI-32

Min. operating voltage

24V DC,24V AC

Max. operating voltage

24V DC,240V AC

Amperage adjustment range (min.)

1A

Amperage adjustment range (max.)

20A

Adjustment range (amperage)

1 - 20 A

Contact Materials

AgNi

Switching current (max.)

8A

Max. switching capacity

240W,2500VA

Connections

Screw terminal

Min. temperature

-20°C

Max. temperature

+55°C

Dim

(W x H x D) 17.6 x 90 x 64 mm

Content

1pc(s)

类型

PRI-32

Contact type

1 change-over

深度

64mm

功能

Current

Operating voltage

24, 24 - 24, 240 V DC, V AC

宽度

17.6mm

高度

90mm
