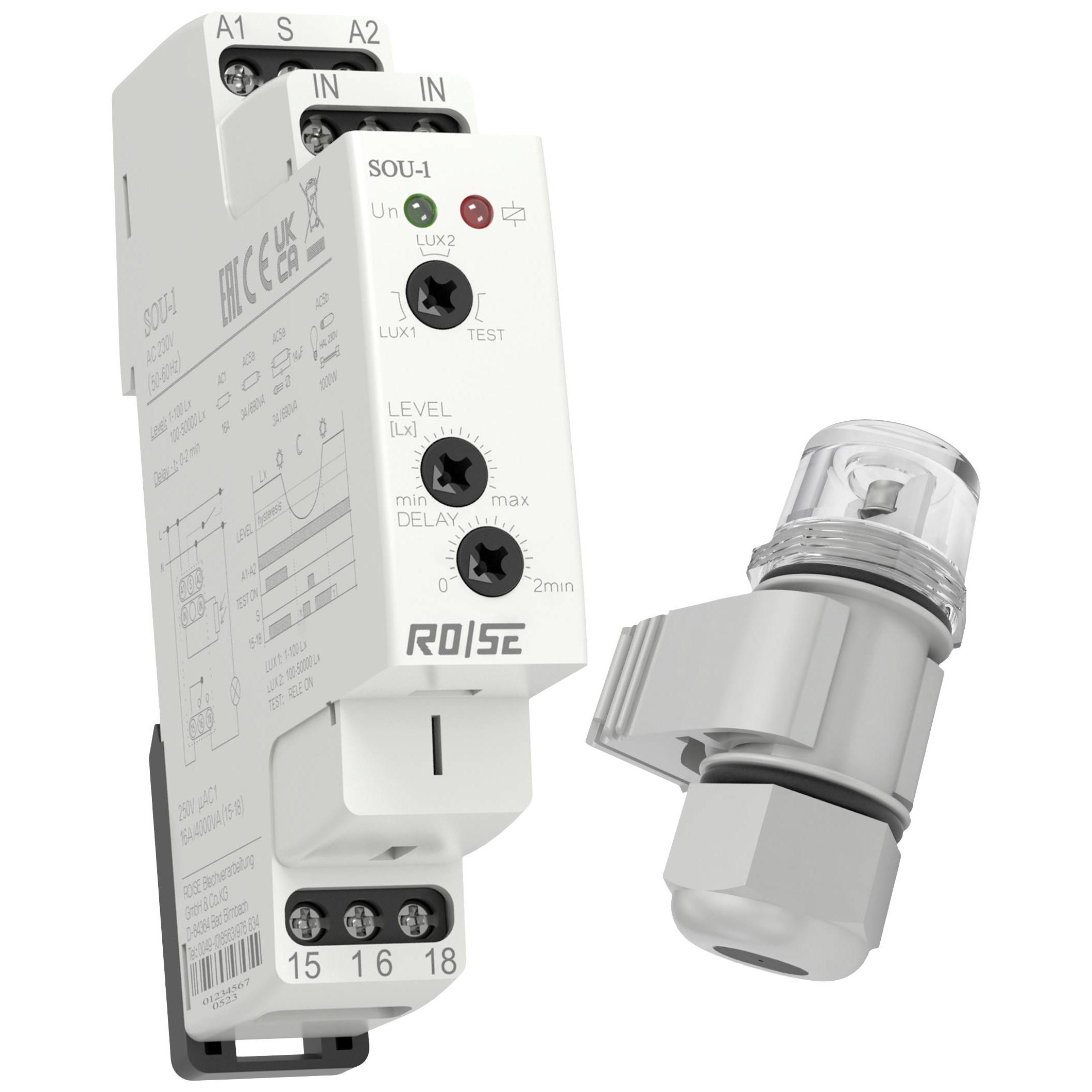

Rose SOU-1/UNI

Min. operating voltage

12V DC,12V AC

Max. operating voltage

240V AC,240V DC

Contact Materials

AgSnO₂

Switching voltage (max.)

24V DC,250V AC

Switching current (max.)

16A

Max. switching capacity

384W,4000VA

Light sensitivity (min.)

1lx

Light sensitivity (max.)

50000lx

Light sensitivity

1 - 50000 lx

Connections

Screw terminal

Min. temperature

-20°C

Max. temperature

+55°C

Dim

(W x H x D) 17.6 x 90 x 64 mm

Content

1pc(s)

类型

SOU-1/UNI

Contact type

1 change-over

深度

64mm

Operating voltage

12, 12 - 240, 240 V AC, V DC

宽度

17.6mm

高度

90mm
