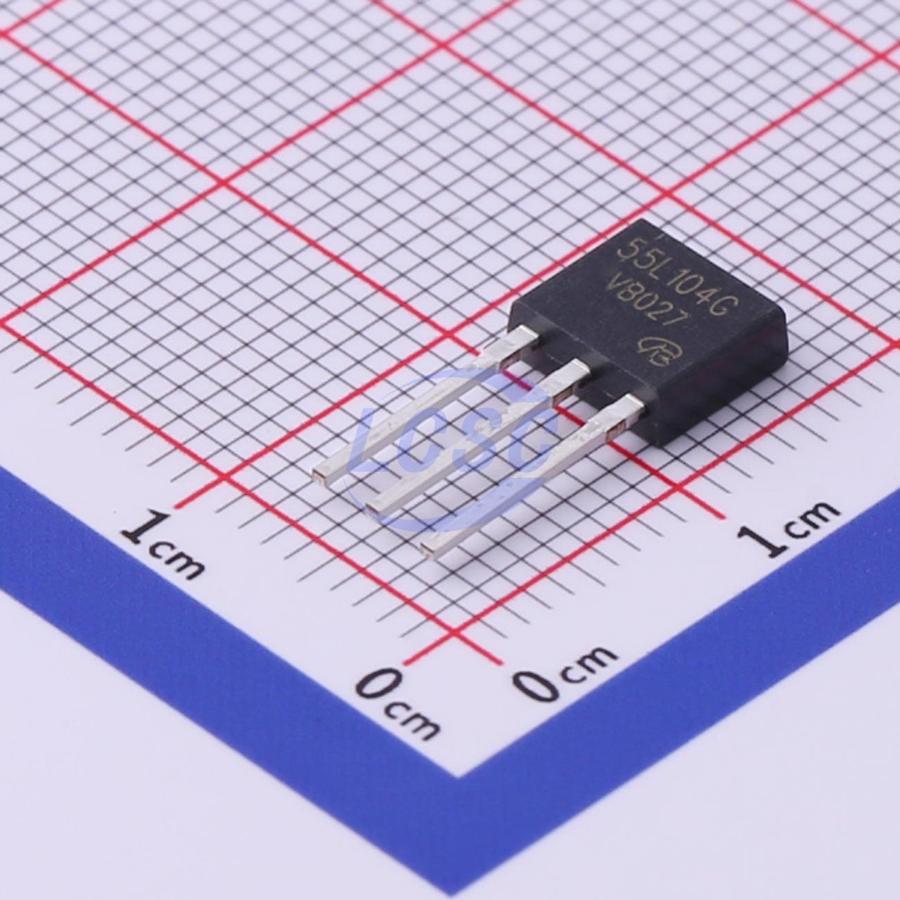

VBsemi Elec NTD3055L104-VB

RoHS

true

Drain Source Voltage (Vdss)

60V

Drain Source On Resistance (RDS(on)@Vgs,Id)

32mΩ@10V,12A

Power Dissipation (Pd)

59.5W

Gate Threshold Voltage (Vgs(th)@Id)

3.5V@250uA

Reverse Transfer Capacitance (Crss@Vds)

130pF@30V

Input Capacitance (Ciss@Vds)

1.1nF@30V

Total Gate Charge (Qg@Vgs)

[email protected]

Package

Tube-packed

操作温度

-55℃~+150℃@(Tj)

类型

1 N-Channel

Continuous Drain Current (Id)

35A
