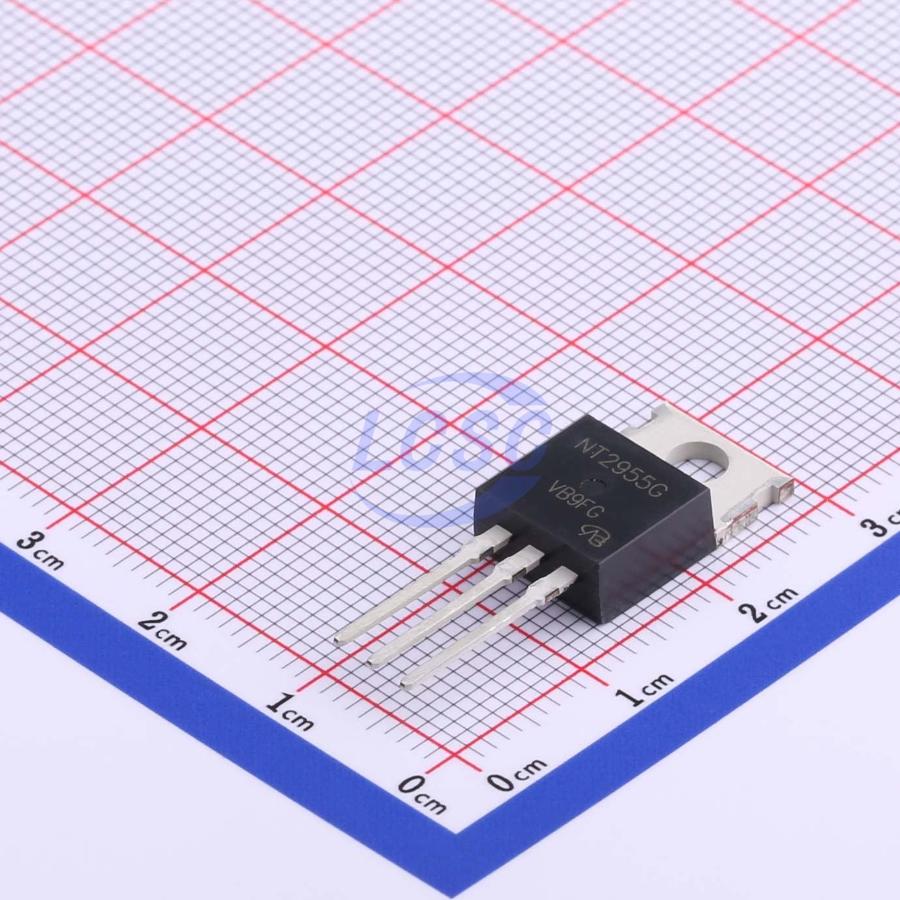

VBsemi Elec NTP2955G-VB

RoHS

true

Drain Source Voltage (Vdss)

60V

Drain Source On Resistance (RDS(on)@Vgs,Id)

100mΩ@10V,5A

Power Dissipation (Pd)

60W

Gate Threshold Voltage (Vgs(th)@Id)

2V@250uA

Reverse Transfer Capacitance (Crss@Vds)

90pF@25V

Input Capacitance (Ciss@Vds)

850pF@25V

Total Gate Charge (Qg@Vgs)

13nC@10V

Package

Tube-packed

操作温度

-55℃~+175℃@(Tj)

类型

1 Piece P-Channel

Continuous Drain Current (Id)

20A
