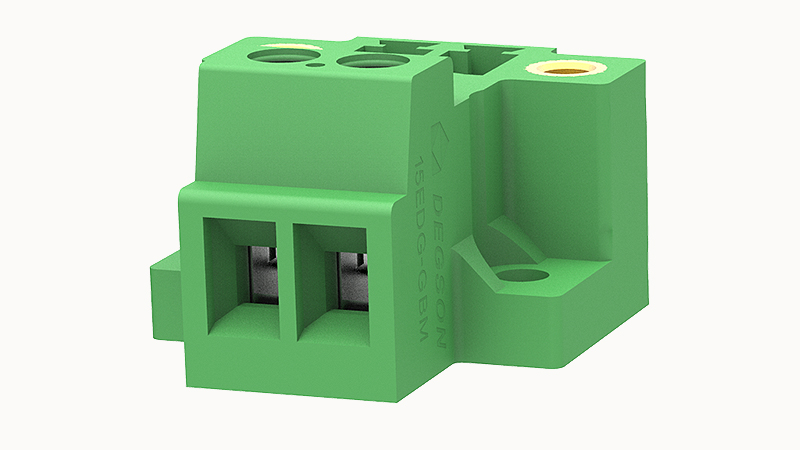

DEGSON 15EDG-GBM-3.81-02P

Conductor cross section solid

0.2~1.5mm²

Conductor cross section flexible

0.2~1.5mm²

AWG

30~14AWG

Torque

0.2N.m

Strip length

6mm

Rated voltage (B)

300V

Rated current (B)

8A

Rated current(III/2)

250V

Rated surge voltage(III/2)

2.5KV

Connection direction

0°

Screwdriver

Slotted screwdriver

Number of potentials

2

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact zone metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~105℃

Number of rows

1

螺距

3.5mm

Rated current

7A

screw thread

M2

Connection method

Screw connection

Rated voltage

250V

Flammability rating

UL94V-0
