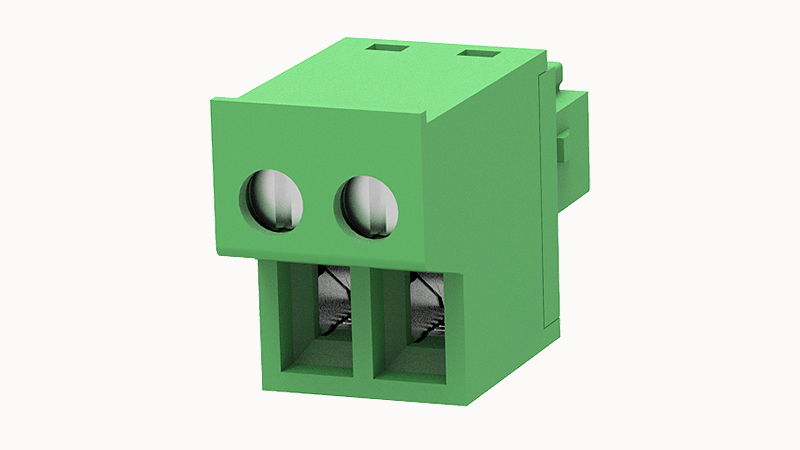

DEGSON 15EDGKC-3.5-02P

Connection direction

0°

Screwdriver

Slotted screwdriver

Number of potentials

2

Pluggable or not

有

Rated surge voltage(II/2)

2.5KV

Rated current(II/2)

250V

Rated current (B)

10A

Rated voltage (B)

300V

Strip length

7mm

Torque

0.2N.m

AWG

30~16AWG

Conductor cross section flexible

0.75~1.5mm²

Conductor cross section solid

0.5~1.5mm²

Contact zone metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~105℃

Number of rows

1

螺距

3.5mm

Rated current

8A

screw thread

M2

Connection method

Screw connection

Rated voltage

250V

Flammability rating

UL94V-0
