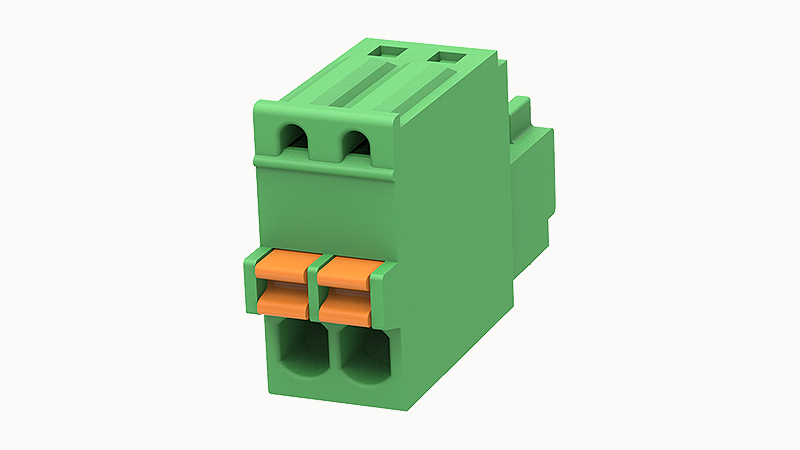

DEGSON 15EDGKD-2.5-02P
- 收藏
- 对比
15EDGKD-2.5-02P
637-15EDGKD-2.5-02P
端子板 - 针座，插头和插座
--
大陆
立即发货
Pluggable terminal blocks,Rated current:5A.Rated voltage （Ⅱ/2）:250V,Cross section:0.5mm²,pitch:2.5mm,Color:green,Contact surface :Tin
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
15EDGKD-2.5-02P详情
DEGSON 15EDGKD-2.5-02P重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
Ambient temperature (operation)
-40℃~105℃
Test Specification
IEC61984/ UL1059
Insulating material group
Ⅰ
Insulation Materials
PA66
Contact zone metal surface
tin-plated
Contact point metal surface
tin-plated
Contact Materials
Copper alloy
Environmental items
Compliant with REACH/RoHS
Pluggable or not
有
Number of potentials
2
Connection direction
0°
Rated surge voltage(III/2)
2.5KV
Rated current(III/2)
250V
Rated current (C)
4A
Rated current (D)
4A
Rated current (B)
4A
Rated voltage (D)
150V
Rated voltage (C)
150V
Rated voltage (B)
150V
Strip length
8mm
AWG
26~20AWG
Conductor cross section flexible
0.2~0.5mm²
Conductor cross section solid
0.2~0.5mm²
Number of rows
1
螺距
2.5mm
Rated current
5A
Connection method
Push-in spring connection
Rated voltage
250V
Flammability rating
UL94V-0
