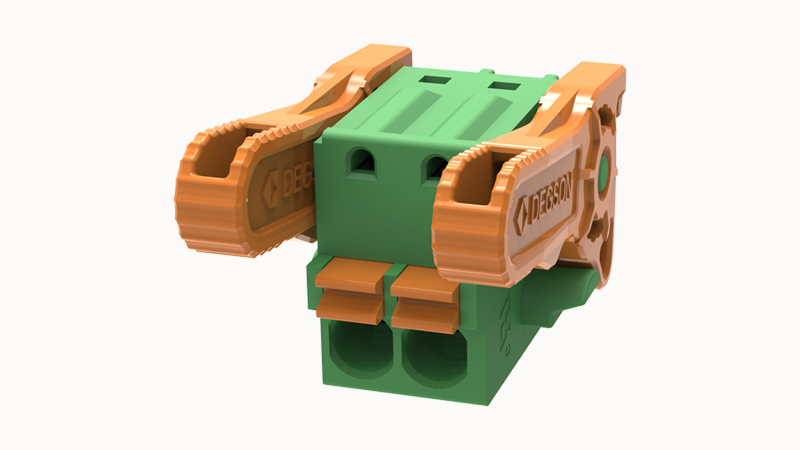

DEGSON 15EDGKDGB-3.5-02P
- 收藏
- 对比
15EDGKDGB-3.5-02P
637-15EDGKDGB-3.5-02P
端子板 - 针座，插头和插座
--
大陆
立即发货
Pluggable terminal blocks,Rated current:12A.Rated voltage （III/2）:250V,pitch:3.5mm,Color:green,Contact surface :Tin
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
15EDGKDGB-3.5-02P详情
DEGSON 15EDGKDGB-3.5-02P重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
Type of packaging
bag packaging
Conductor cross section solid
0.2~1.5mm²
Conductor cross section flexible
0.2~1.5mm²
AWG
28~16AWG
Strip length
9mm
Rated voltage (B)
300V
Rated voltage (C)
300V
Rated voltage (D)
300V
Rated current (B)
8A
Rated current (D)
8A
Rated current (C)
8A
Rated current(III/2)
250V
Rated surge voltage(III/2)
2.5KV
Screwdriver
Slotted screwdriver
Number of potentials
2
Pluggable or not
有
Environmental items
Compliant with REACH/RoHS
Contact Materials
Copper alloy
Contact zone metal surface
tin-plated
Insulation Materials
PA66
Relative tracking index CTI
600V
Shell color
green
Insulating material group
Ⅰ
Test Specification
IEC61984/ UL1059
Ambient temperature (operation)
-40℃~105℃
Number of rows
1
螺距
3.5mm
Rated current
12A
Connection method
Push-in spring connection
Rated voltage
250V
Flammability rating
UL94V-0
15EDGKDGB-3.5-02P拓展信息
