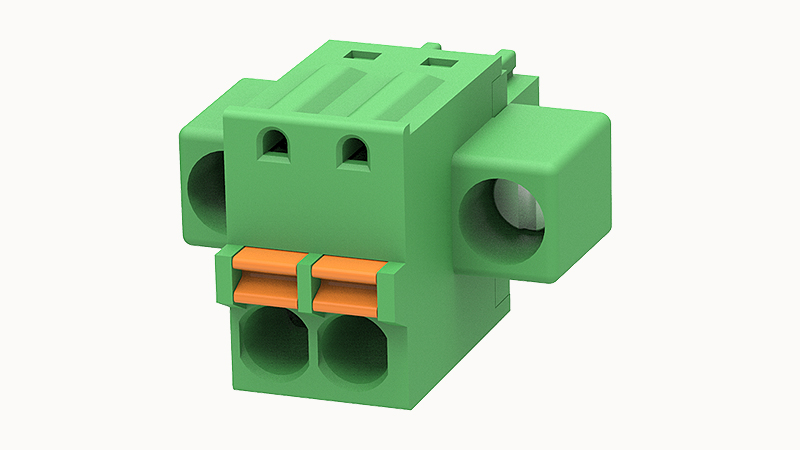

DEGSON 15EDGKDM-3.5-02P

Ambient temperature (operation)

-40℃~105℃

Test Specification

IEC61984/ UL1059

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact zone metal surface

tin-plated

Contact point metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

有

Number of potentials

2

Connection direction

0°

Rated surge voltage(III/2)

2.5KV

Rated current(III/2)

250V

Rated current (C)

8A

Rated current (D)

8A

Rated current (B)

8A

Rated voltage (D)

300V

Rated voltage (C)

300V

Rated voltage (B)

300V

Strip length

9mm

Torque

0.4N.m

AWG

28~16AWG

Conductor cross section flexible

0.2~1.5mm²

Conductor cross section solid

0.2~1.5mm²

Number of rows

1

螺距

3.5mm

Rated current

12A

Connection method

Push-in spring connection

Rated voltage

250V

Flammability rating

UL94V-0
