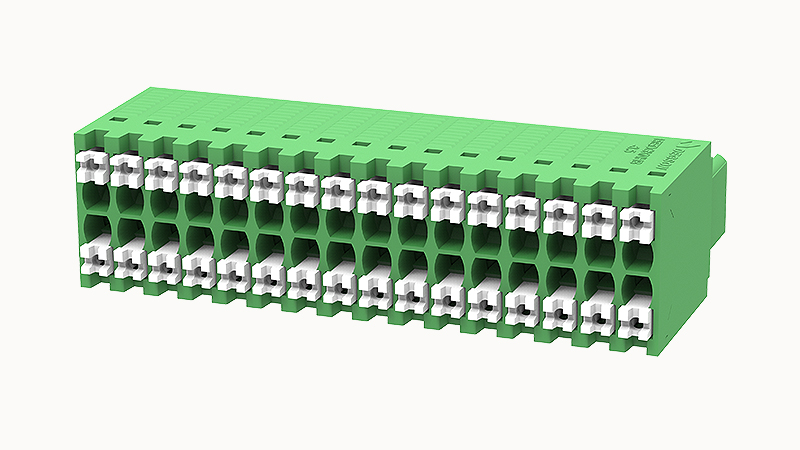

DEGSON 15EDGKNHB-3.5-32P
- 收藏
- 对比
15EDGKNHB-3.5-32P
637-15EDGKNHB-3.5-32P
端子板 - 针座，插头和插座
--
大陆
立即发货
Pluggable terminal blocks,Rated current:13.5A.Rated voltage （Ⅲ/2）:160V,Cross section:1.5mm2,pitch:3.5mm,Color:green,Contact surface :Tin
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
15EDGKNHB-3.5-32P详情
DEGSON 15EDGKNHB-3.5-32P重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
Products weight (without packaging)
21.95
Packing unit
140
Screwdriver
/
Operating tool
/
Marking strip
/
Bridge
/
Coding strip
/
Ambient temperature (operation)
-40℃~105℃(depending on derating curve)
Test Specification
IEC61984/ UL1059
Insulating material group
Ⅰ
Insulation Materials
PA66
Contact zone metal surface
tin-plated
Contact point metal surface
tin-plated
Contact Materials
Copper alloy
Environmental items
Compliant with REACH/RoHS
Pluggable or not
有
Number of potentials
32
Connection direction
0°
Rated surge voltage(II/2)
2.5KV
Rated surge voltage(III/2)
2.5KV
Rated surge voltage(III/3)
2.5KV
Rated voltage(II/2)
320V
Rated voltage(III/2)
160V
Rated voltage(III/3)
160V
Rated current (C)
10A
Rated current (D)
10A
Rated current (B)
10A
Rated voltage (D)
300V
Rated voltage (B)
300V
Strip length
11mm
AWG
28~16AWG
Conductor cross section flexible
0.2~1.5mm²
Conductor cross section solid
0.2~1.5mm²
Number of rows
2
螺距
3.5mm
Rated current
13.4A
Connection method
Push-in spring connection
Rated voltage
160V
Flammability rating
UL94V-0
