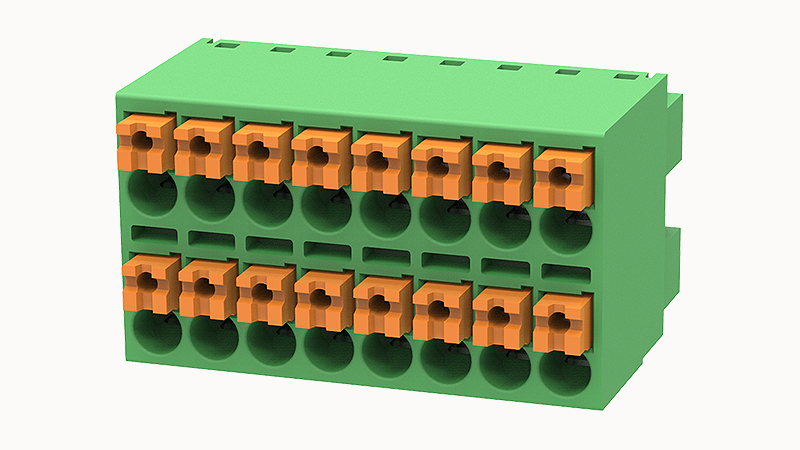

DEGSON 15EDGKNHC-3.5-16P

Conductor cross section solid

0.2~1.5mm²

Conductor cross section flexible

0.2~1.0mm²

AWG

24~16AWG

Strip length

8mm

Rated voltage (B)

300V

Rated current (B)

8A

Rated voltage(III/3)

160V

Rated voltage(III/2)

160V

Rated voltage(II/2)

320V

Rated surge voltage(III/3)

2.5KV

Rated surge voltage(III/2)

2.5KV

Rated surge voltage(II/2)

2.5KV

Connection direction

0°

Number of potentials

16

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact point metal surface

tin-plated

Contact zone metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Coding strip

/

Bridge

/

Marking strip

/

Operating tool

/

Screwdriver

/

Packing unit

250

Products weight (without packaging)

8.91

Number of rows

2

螺距

3.5mm

Rated current

8A

Connection method

Push-in spring connection

Rated voltage

160V

Flammability rating

UL94V-0
