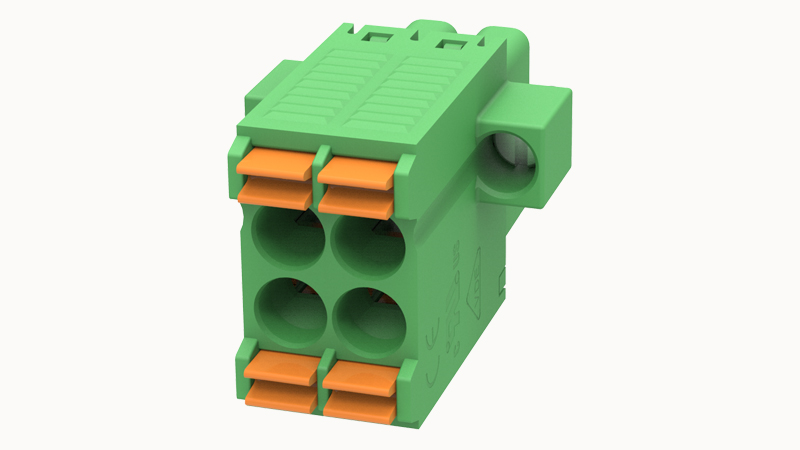

DEGSON 15EDGKNHM-3.5-04P
- 收藏
- 对比
15EDGKNHM-3.5-04P
637-15EDGKNHM-3.5-04P
端子板 - 针座，插头和插座
--
大陆
立即发货
Pluggable Terminal Blocksnominal current9.5A.Rated voltage(Ⅱ/2)：320V,pitch:3.5mm,Color:green,Contact surface:Tin
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
15EDGKNHM-3.5-04P详情
DEGSON 15EDGKNHM-3.5-04P重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
Conductor cross section solid
0.2~1.5mm²
Conductor cross section flexible
0.2~1.5mm²
AWG
26~16AWG
Strip length
10mm
Rated voltage (B)
300V
Rated current (B)
8A
Rated current (C)
8A
Rated current(III/3)
200V
Rated current(III/2)
250V
Rated current(II/2)
320V
Rated surge voltage(III/3)
2.5KV
Rated surge voltage(III/2)
2.5KV
Rated surge voltage(II/2)
2.5KV
Connection direction
0°
Number of potentials
4
Pluggable or not
有
Environmental items
Compliant with REACH/RoHS
Contact Materials
Copper alloy
Contact point metal surface
tin-plated
Contact zone metal surface
tin-plated
Insulation Materials
PA66
Insulating material group
Ⅰ
Test Specification
IEC61984/ UL1059
Ambient temperature (operation)
-40℃~105℃
Number of rows
1
螺距
3.5mm
Rated current
9.5A
Connection method
Push-in spring connection
Rated voltage
250V
Flammability rating
UL94V-0
