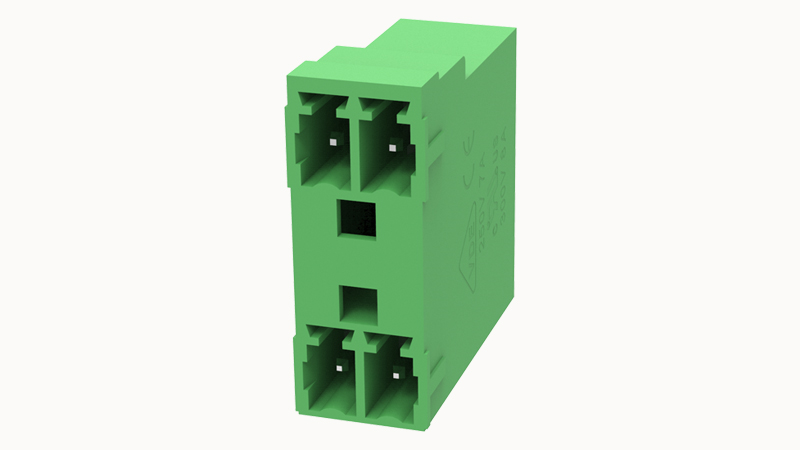

DEGSON 15EDGRH-3.81-04P

Rated voltage (B)

300V

Rated current (B)

8A

Rated current(II/2)

250V

Rated surge voltage(II/2)

2.5KV

Connection direction

0°

Ambient temperature (operation)

-40℃~105℃

Test Specification

IEC60947/UL1059

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact zone metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

有

Number of potentials

4

Pin arrangement

Double-row in a straight line

Type of installation

PCB welding

Number of rows

2

螺距

3.81mm

Rated current

7A

Rated voltage

250V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
