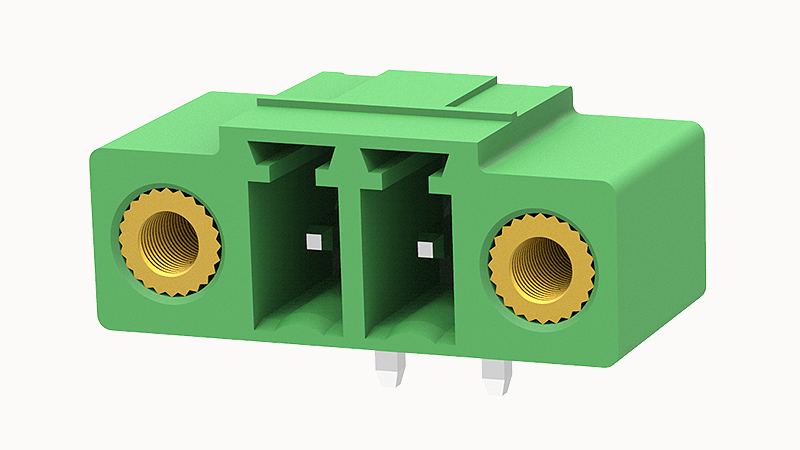

DEGSON 15EDGRM-THR-3.5-02P

Rated voltage (B)

300V

Rated current (B)

8A

Rated current(II/2)

250V

Rated surge voltage(II/2)

2.5KV

Connection direction

0°

Type of installation

PCB welding

Pin arrangement

Single row in a straight line

Number of potentials

2

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact zone metal surface

tin-plated

Insulation Materials

High temperature resistant materials

Insulating material group

Ⅲa

Test Specification

IEC60947/UL1059

Ambient temperature (operation)

-40℃~130℃

Number of rows

1

螺距

3.5mm

Rated current

8A

Rated voltage

250V

过程

Reflow soldering/wave soldering/manual soldering

Flammability rating

UL94V-0
