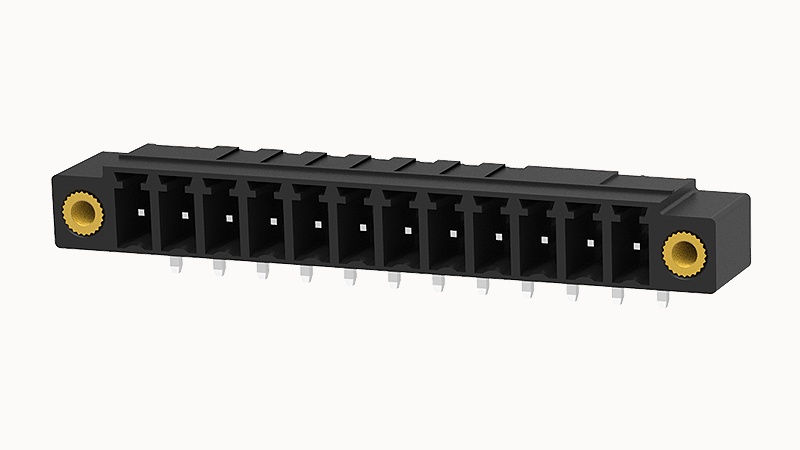

DEGSON 15EDGRM-THR-3.5 Reel package-12P

Products weight (without packaging)

3.761

Packing unit

380

Marking strip

/

Bridge

/

Coding strip

/

Operating tool

/

Screwdriver

/

Ambient temperature (operation)

-40℃~130℃(depending on derating curve)

Test Specification

IEC60947/UL1059

Insulating material group

Ⅲa

Insulation Materials

High temperature resistant materials

Contact zone metal surface

tin-plated

Contact Materials

copper

Environmental items

Compliant with REACH/RoHS

Pluggable or not

有

Number of potentials

12

Pin arrangement

Single row in a straight line

Type of installation

PCB welding

Connection direction

0°

Rated surge voltage(II/2)

2.5KV

Rated voltage(II/2)

250V

Rated current (B)

8A

Rated voltage (B)

300V

Number of rows

1

螺距

3.5mm

UL可燃性规范

UL94V-0

Rated current

8A

Rated voltage

250V

过程

Reflow soldering/wave soldering/manual soldering
