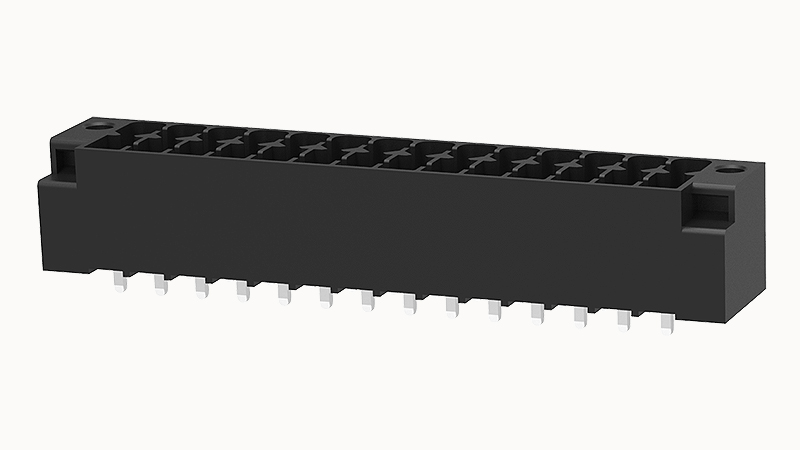

DEGSON 15EDGVHCM-THR-3.5-28P

Type of packaging

box-packed

Rated voltage (B)

300V

Rated voltage (D)

300V

Rated current (B)

8A

Rated current (D)

8A

Rated current (C)

8A

Rated voltage(III/3)

200V

Rated voltage(III/2)

200V

Rated voltage(II/2)

400V

Rated surge voltage(III/3)

2.5KV

Rated surge voltage(III/2)

2.5KV

Rated surge voltage(II/2)

2.5KV

Connection direction

90°

Type of installation

PCB welding

Pin arrangement

Double-row in a straight line

Number of potentials

28

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Products weight (without packaging)

4.98

Packing unit

570

Marking strip

/

Bridge

/

Coding strip

15EDGKNH-PWI

Operating tool

/

Screwdriver

/

Ambient temperature (storage/transportation)

-40℃~70℃

Ambient temperature (operation)

-40℃~120℃(depending on derating curve)

Ambient temperature (assembly)

-5℃~100℃

Relative humidity (storage/transport)

30% ~ 70%

Test Specification

IEC61984/ UL1059

Insulating material group

Ⅲa

Insulation Materials

High temperature resistant materials

Contact point metal surface

tin-plated

Number of rows

2

螺距

3.5mm

UL可燃性规范

UL94V-0

Rated current

9.5A

Rated voltage

200V

过程

Reflow soldering/wave soldering/manual soldering
