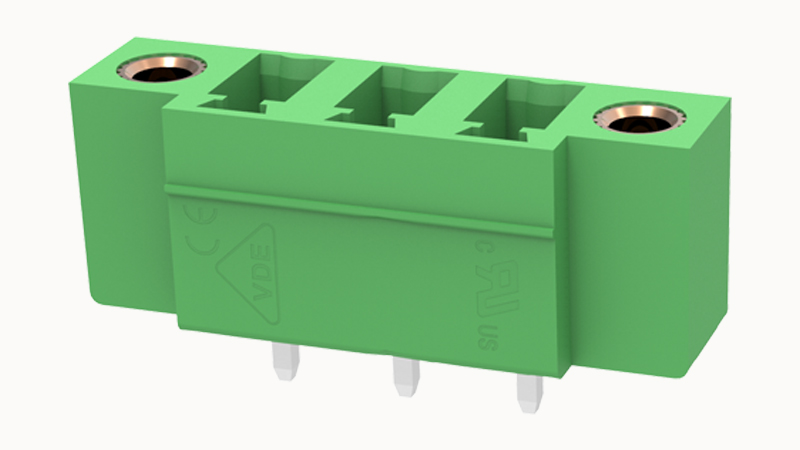

DEGSON 15EDGVM-5.08-03P

Type of installation

PCB welding

Pin arrangement

Single row in a straight line

Number of potentials

3

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact zone metal surface

tin-plated

Insulation Materials

PA66

Connection direction

90°

Rated surge voltage(II/2)

4KV

Rated voltage(II/2)

450V

Rated current (B)

8A

Rated voltage (B)

300V

Products weight (without packaging)

Packing unit

Marking strip

/

Bridge

/

Coding strip

/

Operating tool

/

Screwdriver

/

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Test Specification

IEC60947/UL1059

Insulating material group

Ⅰ

Number of rows

1

螺距

5.08mm

Rated current

7A

Rated voltage

450V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
