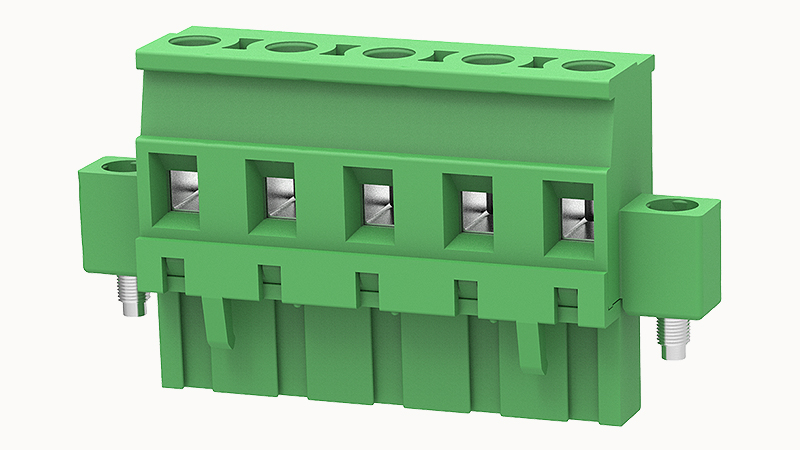

DEGSON 2EDGKAM-7.62-05P

Conductor cross section solid

1.0~2.5mm²

Conductor cross section flexible

1.0~2.5mm²

AWG

28~12AWG

Strip length

7mm

Rated voltage (B)

300V

Rated voltage (D)

300V

Rated current (B)

15A

Rated current (D)

10A

Rated voltage(III/2)

400V

Rated surge voltage(III/2)

4KV

Connection direction

90°

Screwdriver

Slotted screwdriver

Number of potentials

5

Pluggable or not

有

Products weight (without packaging)

10.876

Packing unit

270

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Test Specification

IEC61984/ UL1059

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact zone metal surface

tin-plated

Contact point metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Number of rows

1

螺距

7.62mm

Rated current

18A

screw thread

M3

Connection method

Screw connection

Rated voltage

400V

Flammability rating

UL94V-0
