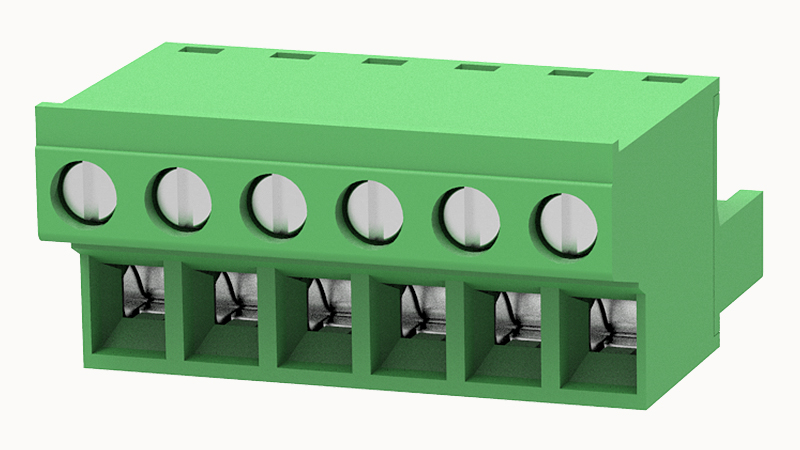

DEGSON 2EDGKC-5.0-06P

Contact zone metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Operating tool

/

Coding strip

2EDG-PWI

Bridge

DG019-5.0

Marking strip

/

Packing unit

330

Products weight (without packaging)

17.513

Contact point metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

有

Number of potentials

6

Screwdriver

Slotted screwdriver

Connection direction

90°

Rated surge voltage(III/2)

4KV

Rated voltage(III/2)

320V

Rated current (C)

15A

Rated current (D)

10A

Rated current (B)

15A

Rated voltage (D)

300V

Rated voltage (C)

150V

Rated voltage (B)

300V

Strip length

10mm

Torque

0.5N.m

AWG

28~12AWG

Conductor cross section flexible

0.2~2.5mm²

Conductor cross section solid

0.2~2.5mm²

Number of rows

1

螺距

5mm

Rated current

20A

screw thread

M2.5

Connection method

Screw connection

Rated voltage

320V

Flammability rating

UL94V-0
