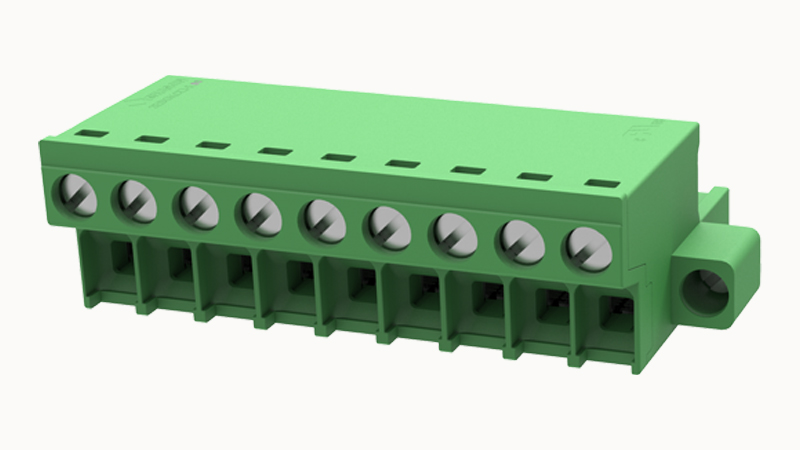

DEGSON 2EDGKCM-5.08-HP-09P

Rated voltage(II/2)

1000V

Rated surge voltage(III/3)

6KV

Rated surge voltage(III/2)

6KV

Rated surge voltage(II/2)

6KV

Connection direction

0°

Screwdriver

Slotted screwdriver

Number of potentials

9

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact point metal surface

tin-plated

Contact zone metal surface

tin-plated

Insulation Materials

PA66

Shell color

green

Insulating material group

Ⅰ

Test Specification

IEC61984/ UL1059

Operating tool

/

Coding strip

2EDG-PWI

Bridge

DG019-5.0

Marking strip

/

Packing unit

170

Products weight (without packaging)

27.44

Rated voltage(III/2)

800V

Rated voltage(III/3)

400V

Rated current (D)

10A

Rated current (B)

15A

Rated voltage (D)

300V

Rated voltage (B)

300V

Strip length

10mm

Torque

0.5N.m

AWG

28~12AWG

feeler gauge a x b／diameter

2.8mm x2.0mm/2.4mm

Conductor cross section flexible

0.2~2.5mm²

Conductor cross section solid

0.2~2.5mm²

Type of packaging

box-packed

Number of rows

1

螺距

5.08mm

Rated current

12A

screw thread

M2.5

Connection method

Screw connection

Rated voltage

800V

Flammability rating

UL94V-0
