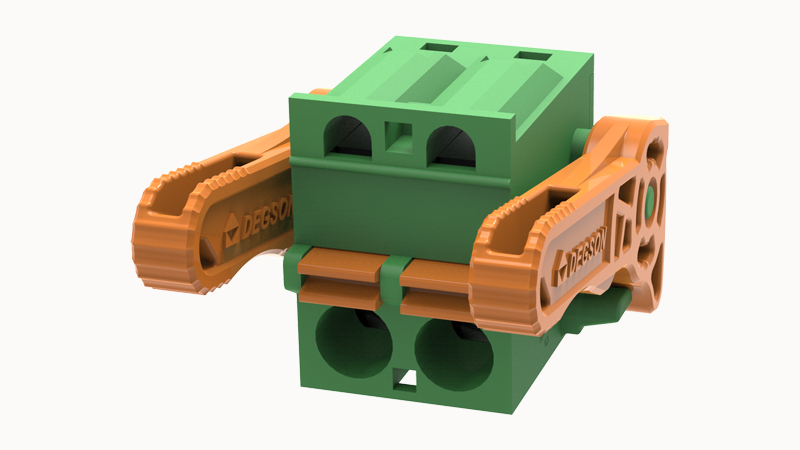

DEGSON 2EDGKDGB-5.08-02P

Type of packaging

bag packaging

Conductor cross section solid

0.2~2.5mm²

Conductor cross section flexible

0.2~2.5mm²

AWG

26~12AWG

Strip length

10mm

Rated voltage (B)

300V

Rated voltage (D)

300V

Rated current (B)

10A

Rated current (D)

10A

Rated current(III/2)

320V

Rated surge voltage(III/2)

4KV

Number of potentials

2

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact zone metal surface

tin-plated

Insulation Materials

PA66

Relative tracking index CTI

600V

Glow Wire Flammability Index GWFI

850

Shell color

green

Insulating material group

Ⅰ

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~105℃

Number of rows

1

螺距

5.08mm

Rated current

20A

Connection method

Push-in spring connection

Rated voltage

320V

Flammability rating

UL94V-0
