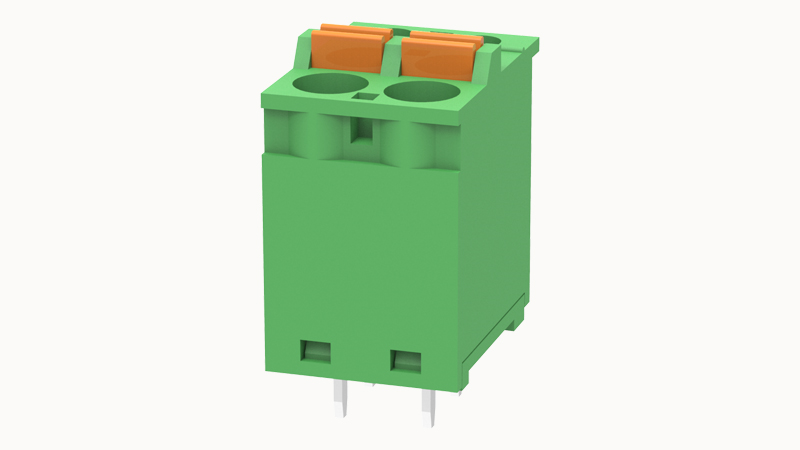

DEGSON 2EDGKDSV-5.0-02P

Ambient temperature (operation)

-40℃~105℃

Test Specification

IEC61984/ UL1059

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact point metal surface

tin-plated

Contact Materials

copper

Environmental items

Compliant with REACH/RoHS

Pluggable or not

no

Number of potentials

2

Pin arrangement

Double-row in a straight line

Type of installation

PCB welding

Connection direction

0°

Rated power frequency voltage(1min)

2.5KV

Rated current(III/2)

320V

Rated current (B)

12A

Rated voltage (B)

300V

Strip length

9mm

AWG

26~12AWG

Conductor cross section flexible

0.2~2.5mm²

Conductor cross section solid

0.2~2.5mm²

Number of rows

1

螺距

5mm

Rated current

20A

Connection method

Push-in spring connection

Rated voltage

320V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
