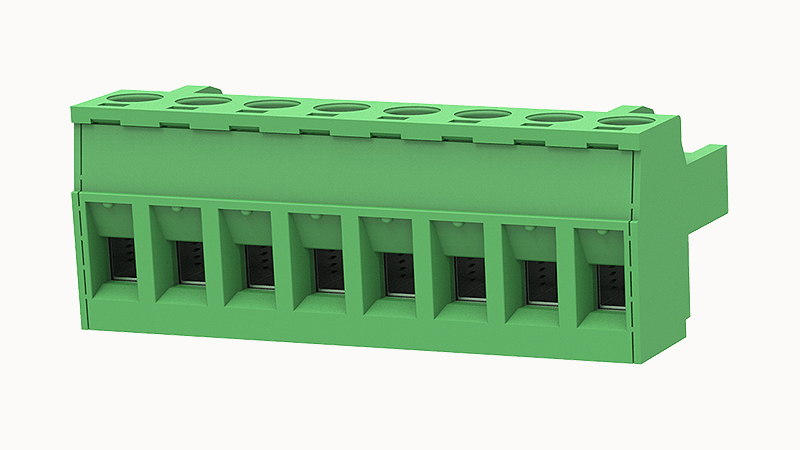

DEGSON 2EDGKF-5.0-08P

Conductor cross section solid

0.2~2.5mm²

Conductor cross section flexible

0.2~2.5mm²

AWG

28~12AWG

Torque

0.5N.m

Strip length

7mm

Rated voltage (B)

300V

Rated voltage (D)

300V

Rated current (B)

15A

Rated current (D)

10A

Rated voltage(III/2)

320V

Rated surge voltage(III/2)

4KV

Connection direction

0°

Screwdriver

Slotted screwdriver

Number of potentials

8

Products weight (without packaging)

11.79

Packing unit

425

Marking strip

/

Bridge

DG019-5.0

Coding strip

2EDG-PWI

Operating tool

/

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Test Specification

IEC61984/ UL1059

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact zone metal surface

tin-plated

Contact point metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

有

Number of rows

1

螺距

5mm

Rated current

20A

screw thread

M3

Connection method

Screw connection

Rated voltage

320V

Flammability rating

UL94V-0
